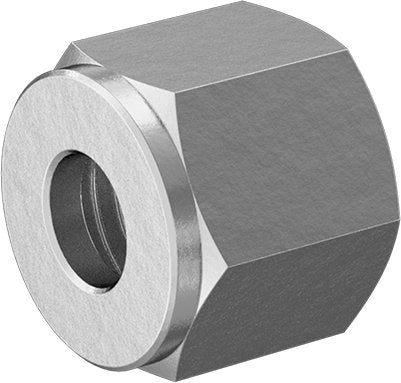

McMaster 7473T186 Nut for 3/8" Tube OD Precision Compression Fitting for Copper Tube

UPC: | Harmonization (Schedule B): 7412.20.0000

SKU KV7473T186
Original price $3.79 - Original price $3.79
Original price
$3.79
$3.79 - $3.79
Current price $3.79

Use these nuts with precision compression sleeves and fittings to create a strong seal on copper tubing. Made to tighter tolerances than other nuts, they are designed for high-precision applications. Nuts have a molybdenum disulfide coating that acts as a lubricant for easy installation. They are brass for good corrosion resistance.

Shape

Straight

Type

Nut

For Use With

Air, Cutting Oil, Ethyl Alcohol, Fuel Oil, Gasoline, Hydraulic Fluid, Isopropyl Alcohol, Mineral Oil, Natural Gas, Steam, Water

Tube Connection



Connection Style

Compression

Compression Connection Type

Standard

Dash Size

06

For Tube



OD

3/8"

Wall Thickness

0.035"

Nut Material

Brass

Nut Finish

Molybdenum Disulfide Coated

Maximum Pressure

1,000 psi @ 72° F

Maximum Vacuum

Not Rated

Temperature Range

-40° to 350° F

Length

9/16"

Compatible With

Parker CPI

For Tube Material

Copper

For Tube Specifications Met

ASTM B68, ASTM B75, ASTM B88

For Tube Fabrication

Seamless

RoHS

RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy

REACH

Not Compliant

DFARS

Specialty Metals COTS-Exempt

Country of Origin

United States

USMCA Qualifying

No

Schedule B

741220.0000

ECCN

EAR99
