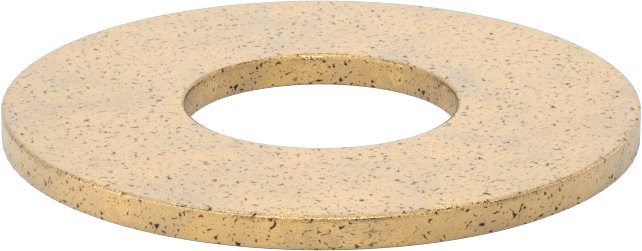

McMaster 7421K32 Ultra-Low-Friction Oil-Embedded Thrust Bearing
UPC: | Harmonization (Schedule B): 8483.30.8090
SKU KV7421K32
Original price
$33.18
-
Original price
$33.18
Original price
$33.18
$33.18
-
$33.18
Current price
$33.18
For applications with frequent starts and stops, the oil in these bearings contains particles of slippery PTFE that lubricate the bearing during startup.
Note: Dynamic load capacity is the maximum load a bearing can withstand at a given shaft speed. If your application’s load and speed requirements are below the values listed, the bearing will work.
|
Bearing Type
|
Plain |
|
Plain Bearing Type
|
Thrust |
|
For Load Direction
|
Thrust |
|
Material
|
841 Bearing Bronze |
|
For Shaft Diameter
|
1 1/2" |
|
ID
|
1.504" |
|
ID Tolerance
|
0" to 0.004" |
|
OD
|
3 1/2" |
|
OD Tolerance
|
-0.018" to 0.032" |
|
Thickness
|
3/16" |
|
Thickness Tolerance
|
-0.005" to 0.005" |
|
Dynamic Thrust Load Capacity
|
14,250 lbs. @ 30 rpm |
|
Lubrication
|
Lubricated |
|
Lubrication Method
|
Embedded |
|
Lubricant
|
SAE 80 Oil with PTFE |
|
For Shaft Type
|
Round |
|
Temperature Range
|
10° to 220° F |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
No |
|
Schedule B
|
848330.8090 |
|
ECCN
|
EAR99 |
