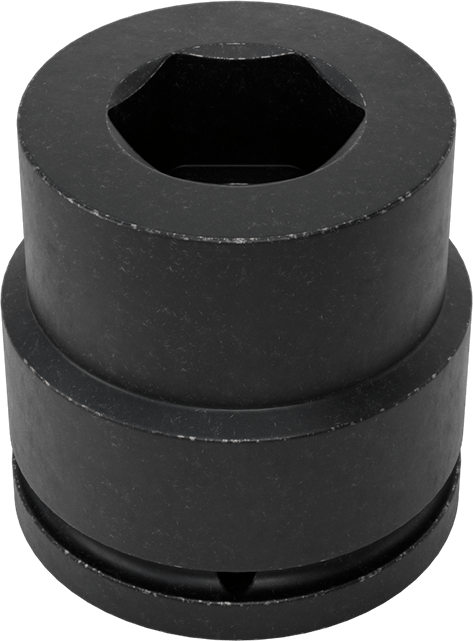

McMaster 7196A13 6-Point Impact Socket, 1-1/2" Square Drive, 1-1/2" Size
McMaster 7196A13 6-Point Impact Socket, 1-1/2" Square Drive, 1-1/2" Size
McMaster 7196A13 6-Point Impact Socket, 1-1/2" Square Drive, 1-1/2" Size
McMaster 7196A13 6-Point Impact Socket, 1-1/2" Square Drive, 1-1/2" Size
McMaster 7196A13 6-Point Impact Socket, 1-1/2" Square Drive, 1-1/2" Size
McMaster 7196A13 6-Point Impact Socket, 1-1/2" Square Drive, 1-1/2" Size
McMaster 7196A13 6-Point Impact Socket, 1-1/2" Square Drive, 1-1/2" Size
McMaster 7196A13 6-Point Impact Socket, 1-1/2" Square Drive, 1-1/2" Size

McMaster 7196A13 6-Point Impact Socket, 1-1/2" Square Drive, 1-1/2" Size

UPC: | Harmonization / Schedule B : 8204.20.0000

Country of Origin: United States | Shipping Weight: 3.8 lbs

$298.36 - $298.36
$298.36
$298.36 - $298.36
$298.36

Achieve the best possible grip on hex fasteners and prevent rounding. These sockets are made to withstand the high torque and force of impact tools.

1 1/2" Square Drive—3/4", 1", and 1 1/2" square drive size sockets require a locking retainer. Use with an impact wrench that has a pin-style socket retainer, or use a socket retaining ring with tools that have a hole- or hole-and-ring style socket retainer.

Bolt Clearance Type Standard
Square Drive Size 1 1/2"
Drive Size 1 1/2"
Nut 15/16"
Bolt 1 11/32"
Compatible Retaining Ring ID 2 7/8"
Material Black-Oxide Steel
Overall Length 3 1/4"
Socket Shape 6-Point
Drive Type Impact
For Drive Style External Hex
OD 3 1/4"
Socket Style Standard
Socket Type Socket
Sold As Individual
System of Measurement Inch
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance Not Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 820420.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying Yes
Related Product Retaining Rings
