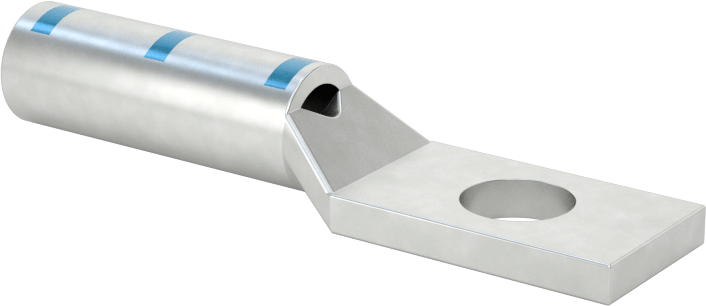

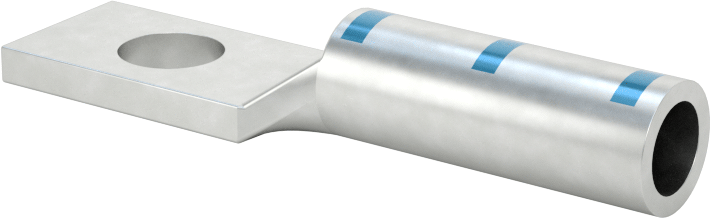

McMaster 6926K75 Tin-Plated Copper Compression Lug, 1 Hole, Single Crimp, for 6 AWG and 1/4" Screw

McMaster 6926K75 Tin-Plated Copper Compression Lug, 1 Hole, Single Crimp, for 6 AWG and 1/4" Screw

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: United States | Shipping Weight: 0.05 lbs

$41.55 - $41.55
$41.55
$41.55 - $41.55
$41.55

These lugs connect wire as large as 500 MCM in industrial feeder circuits, high-power service entrances, and other large systems. Squeeze the barrel tightly and evenly onto the wire with a compression tool for a permanent connection that stands up to heavy vibration, sudden shocks, and daily wear and tear. Compression lugs are a step up from set screw lugs when you need a physically strong connection, though set screw lugs attach to even larger wire.

Single Crimp — Provides a secure enough grip for most jobs.

Noninsulated — The basic, economical option when short circuits from nearby wiring aren't a concern.

Number of Holes 1
For Wire Gauge 6
For Screw Size 1/4"
For Screw Decimal Equivalent 0.250"
Length 1.625"
Width 0.410"
Height 0.290"
Thickness 0.09"
Stripe Color Blue
For Wire Construction Stranded
For Wire Material Copper
Terminal Material Tin-Plated Copper
Maximum Temperature 190° F
Maximum Voltage 600V AC
Certification CSA Certified, UL Listed
Barrel Type Closed
Crimp Type Single
Insulation Noninsulated
Performance Vibration Resistant
Shape Straight
Signal Type Power
System of Measurement Inch
Terminal Type Compression Lug
UL File Number E12822
Wire Connection Method Compression
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 853690.4000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying Yes
