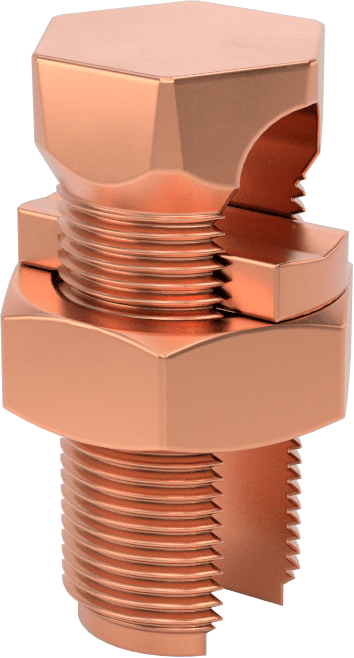

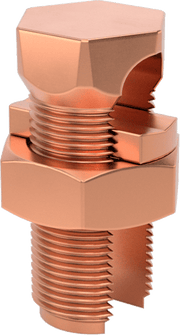

McMaster 6921K63 Split-Bolt Splice, for 2-2/0 Wire Gauge Copper Wire

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: United States | Shipping Weight: 0.2 lbs

Original price $70.33 - Original price $70.33
Original price
$70.33
$70.33 - $70.33
Current price $70.33

Slide large wires in and tighten the hex nut for a strong, secure hold between the wire and screw. Loosen the hex to make a quick adjustment or to reuse the splice elsewhere. These splices are easy to use, but the connection isn't fully protected by the body of the splice.

Splice Type Split-Bolt Splice
Insulation Noninsulated
Number of Wires 2
Wire Gauge 2 to 2/0
Wire Construction Solid, Stranded
Wire Material Copper
Tap Wire Minimum Gauge 14
Tap Wire Construction Stranded
Wire Slot Width 0.42"
Head Width 0.81"
Terminal Material Copper
Maximum Temperature 190° F
Maximum Voltage 600V AC
Certification CSA Certified, UL Listed
Application Splicing, Tapping
Performance No Crimp, Reusable
Reusable Yes
Signal Type Power
Wire Connection Method Screw On
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 853690.4000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying Yes
