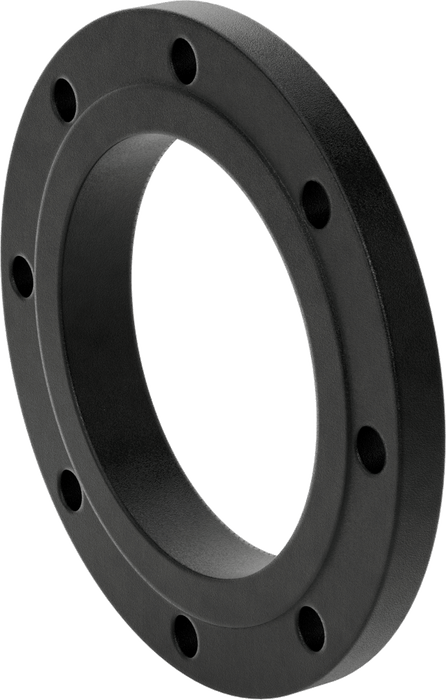

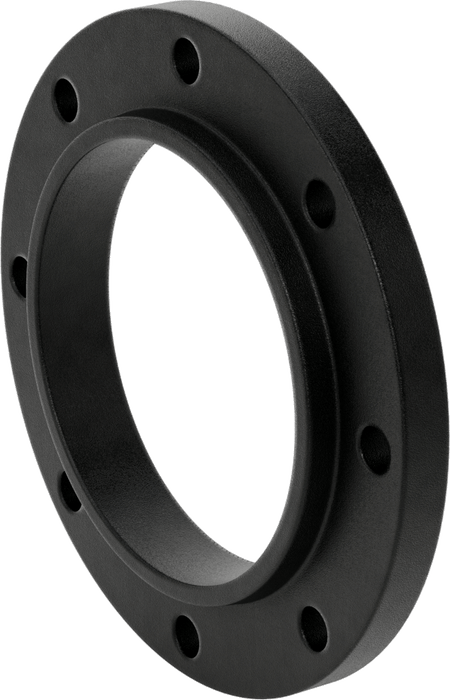

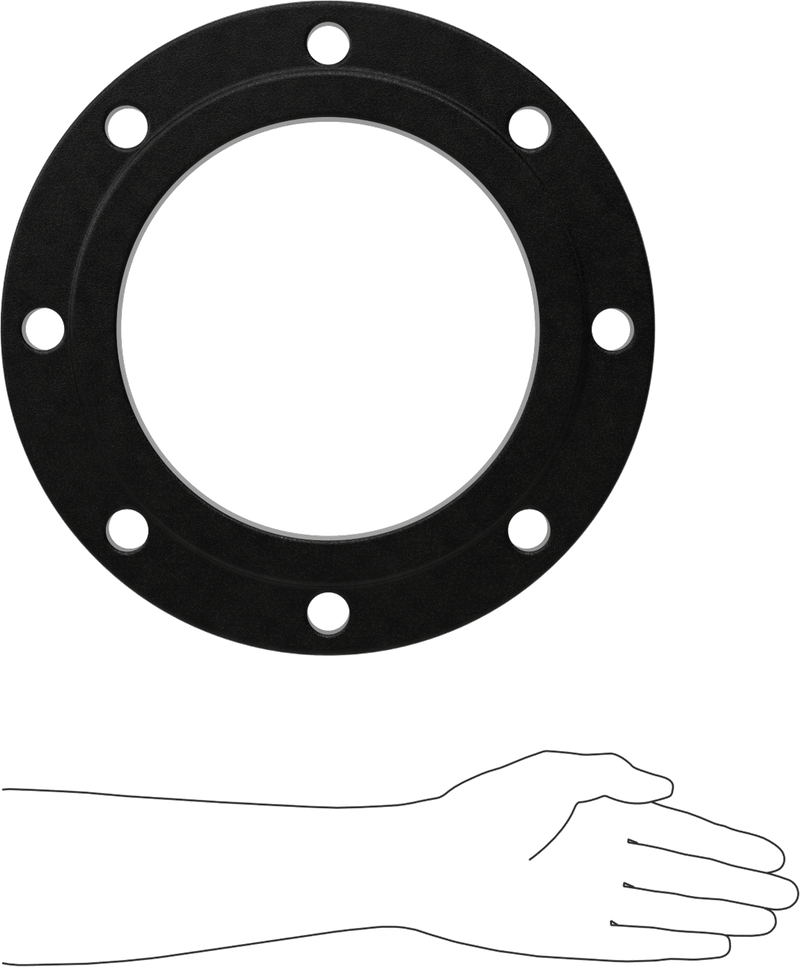

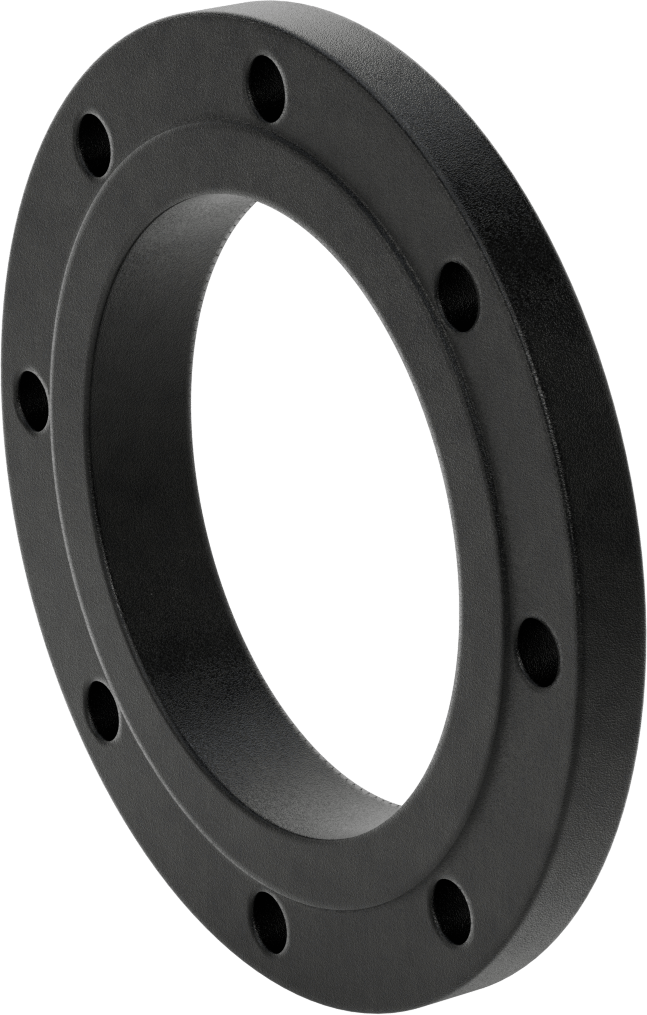

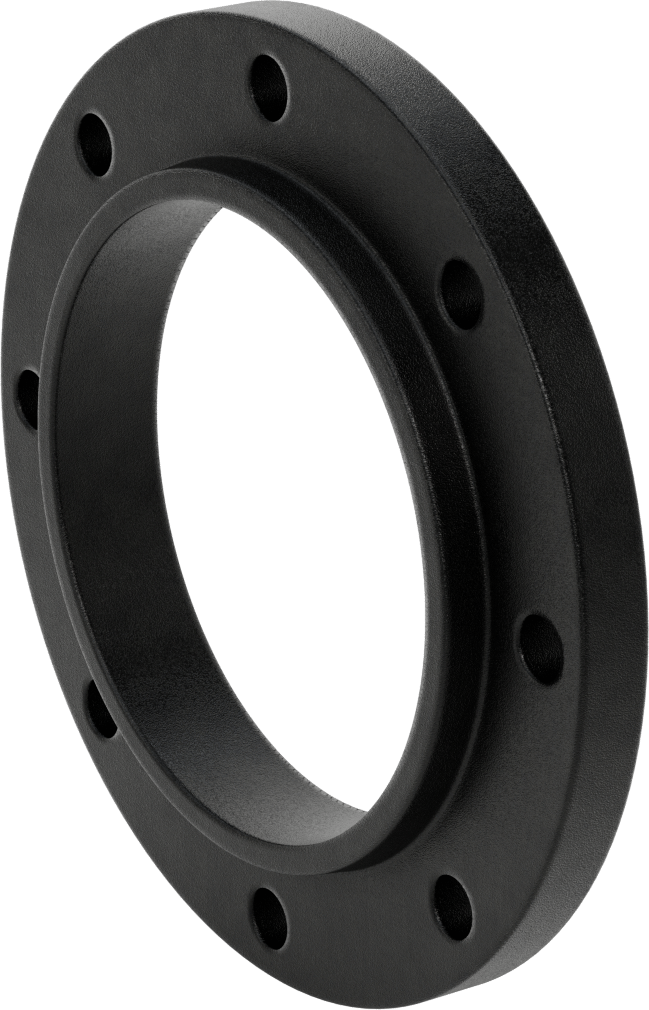

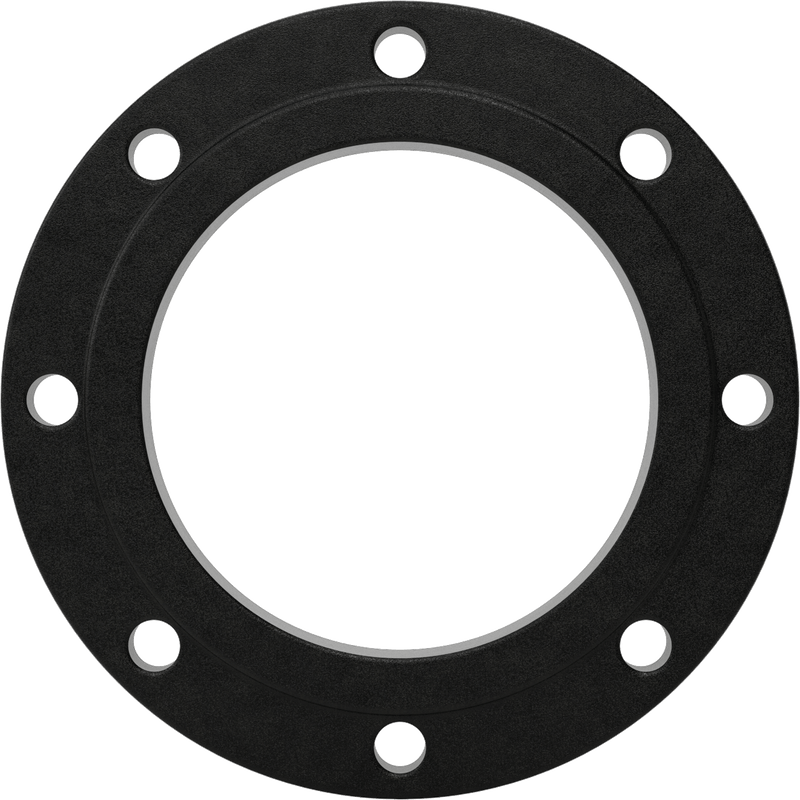

McMaster 68095K397 Low-Pressure Steel Unthreaded Pipe Flange, Slip-on Weld Adapter, 8 Pipe Size

McMaster 68095K397 Low-Pressure Steel Unthreaded Pipe Flange, Slip-on Weld Adapter, 8 Pipe Size

UPC: | Harmonization / Schedule B : 7307.91.2000

Country of Origin: United States | Shipping Weight: 26 lbs

$311.51 - $311.51
$311.51
$311.51 - $311.51
$311.51

Bolt two flat-surface flanges or two raised-surface flanges of the same size together with a gasket (sold separately) to create an access point in a pipe line. Flanges are for use with low-pressure applications in noncorrosive environments.

Slip-on-Weld Fitting Connection — Slip-on weld flanges have no internal stop; slide a pipe through the flange and weld on both sides.

Pressure Rating Low Pressure
Shape Straight
Fitting Type Flange
Fitting Connection Slip-On Weld Female
Pipe Size (A) 8
Pipe Size (B) 8
Flanged Connection Surface (B) Raised
Flange OD 13 1/2"
For Bolt Diameter 3/4"
Bolt Hole Diameter 7/8"
Number Of Bolt Holes 8
Bolt Circle Diameter 11 3/4"
Pressure Class 150
Material Steel
Maximum Pressure @ Temperature 285 psi @ 72° F
Maximum Steam Pressure @ Temperature 150 psi @ 300° F
Certificate Form Digital
Certificate Type Material Certificate with Traceable Lot Number
Connects To Pipe
Flange Construction One Piece
For Fitting Material Iron, Steel
For Fitting Schedule 40
For Pipe Material Steel
For Pipe Schedule 40
For Use With Air, Natural Gas, Oil, Steam, Water
Specifications Met ANSI/MSS SP-25, ASME B16.5, ASTM A105
Threading Unthreaded
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance Not Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 730791.2000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying Yes
