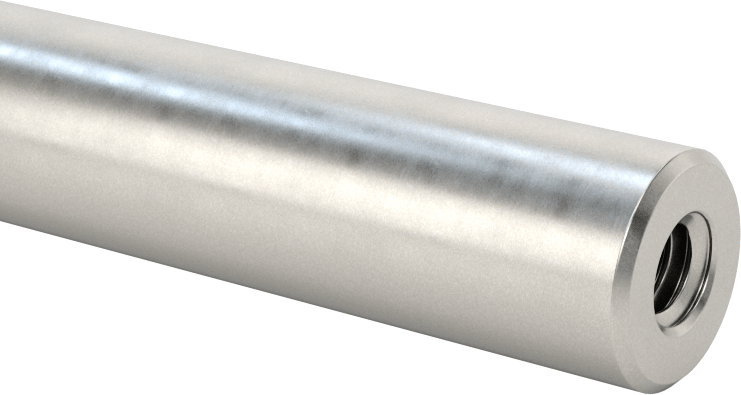

McMaster 6649K529 Tapped Linear Motion Shaft, Tapped x Straight End, 1050 Carbon Steel, 1/2" Diameter, 6" Long

McMaster 6649K529 Tapped Linear Motion Shaft, Tapped x Straight End, 1050 Carbon Steel, 1/2" Diameter, 6" Long

Name: McMaster 6649K529 Tapped Linear Motion Shaft, Tapped x Straight End, 1050 Carbon Steel, 1/2" Diameter, 6" Long
Brand: McMaster-Carr
Price: 91.96 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 8482.99.1010

Country of Origin: United States | Shipping Weight: 1.05 lbs

$91.96 - $91.96

$91.96

$91.96 - $91.96

$91.96

Mount directly with studs, bolts, and other threaded fasteners—no shaft supports needed. Pair with linear bearings to create smooth, precise motion. These shafts are turned, ground, and polished to tight tolerances and hardened to resist wear.

Steel — Stronger than aluminum and stainless steel. These shafts are best for dry environments since moisture will cause them to rust.

Surface Smoothness — The lower the microinch value, the smoother the finish and the less friction it will cause on the bearing.

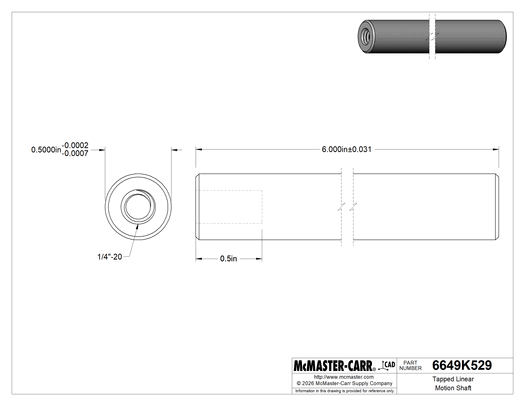

End Type	Plain, Tapped
Material	Steel
Diameter	1/2"
Diameter Tolerance	-0.0007" to -0.0002"
Length	6"
Length Tolerance	-0.031" to 0.031"
Thread Size	1/4"-20
Thread Length	1/2"
Hardness	Rockwell C60
Hardness Rating	Extra Hard
Surface Smoothness	16 μin
Edge Type	Chamfered
For Motion	Linear
Heat Treatment	Case Hardened
Mechanical Finish	Polished, Precision Ground, Turned
Performance	Highly Wear Resistant, Low Friction
Shaft Type	Round
Steel Grade	1050 Carbon Steel
Straightness Tolerance	0.002"/1 ft.
System of Measurement	Inch
Tolerance Rating	Standard
Country of Origin	United States
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	1C999
REACH Compliance	REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	848299.1010
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes
