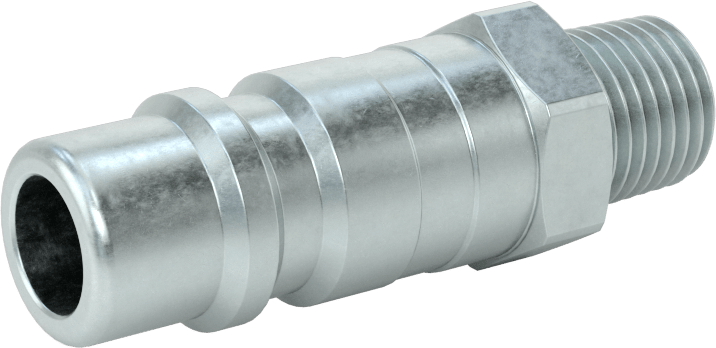

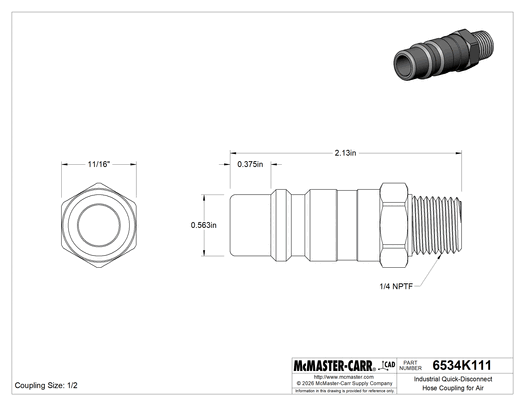

McMaster 6534K111 Industrial Quick-Disconnect Hose Coupling for Air, Steel, Plug, 1/2 Coupling Size, 1/4 NPTF Male
UPC: | Harmonization / Schedule B : 7326.90.8695
Country of Origin: Taiwan | Shipping Weight: 0.005 lbs
UPC: | Harmonization / Schedule B : 7326.90.8695
Country of Origin: Taiwan | Shipping Weight: 0.005 lbs
A complete coupling consists of a plug and a socket (both sold separately or in a set) that connect and disconnect quickly. Use them if you need frequent access to a line. They are also known as industrial interchange couplings. All Industrial plugs are compatible with any of the Industrial sockets of the same coupling size, regardless of the pipe size or barbed hose ID.
Steel is stronger and more durable than other metals.
Zinc-plated steel has fair corrosion resistance and should be used primarily in dry environments.
NPTF (Dryseal) threads are compatible with NPT threads.
Note: To ensure a correct fit, make sure that the plug and socket have the same coupling size.
| For Use With | Air |
| Shape | Straight |
| Type | Adapter |
| Quick-Disconnect Component | Plug |
| Flow Control | Open |
| Connection Style | Quick Disconnect |
| Quick-Disconnect Shape | Industrial |
| Gender | Male |
| Coupling Size | 1/2 |
| Length | 3/8" |
| Diameter | 9/16" |
| Connection Style | Threaded |
| Gender | Male |
| Pipe Size | 1/4 |
| Thread Type | NPTF |
| Material | Zinc-Plated Steel |
| Maximum Pressure | 300 psi @ 72° F |
| Maximum Vacuum | Not Rated |
| Temperature Range | -40° to 225° F |
| Length | 2 1/8" |
| Specifications Met | Fed. Spec. A-A-59439, ISO 6150/B |
| RoHS | RoHS 3 (2015/863/EU) compliant with exemption 6(a)-I - Lead as an alloying element in steel |
| REACH | Not Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | Taiwan |
| Schedule B | 732690.8695 |
| ECCN | EAR99 |
