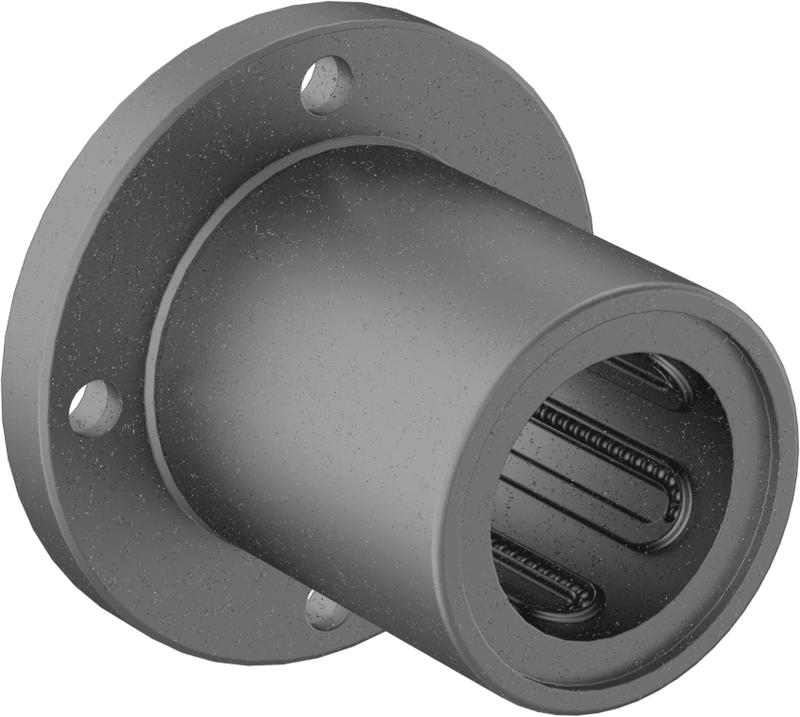

McMaster 6483K57 Flange-Mounted Ball Linear Bearing, Round Housing, for 1-1/4" Shaft, Fixed Alignment, COO Japan

McMaster 6483K57 Flange-Mounted Ball Linear Bearing, Round Housing, for 1-1/4" Shaft, Fixed Alignment, COO Japan

UPC: | Harmonization / Schedule B : 8483.20.0010

Country of Origin: Japan | Shipping Weight: 2 lbs

$222.18 - $222.18
$222.18
$222.18 - $222.18
$222.18

The flanged housing makes these bearings a good solution for vertical linear motion applications. All are for use with round end-supported shafts and have a fixed-alignment design for use where shaft misalignment is unlikely. End seals keep lubricant in and dirt out.

Alignment Style Fixed
Bearing Material Steel
Housing Material Steel
Ball Material Steel
Flange Shape Round

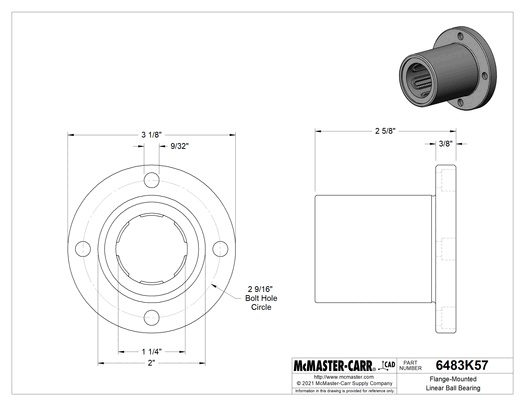

For Shaft Diameter 1 1/4"
Length 2 5/8"
Width 3 1/8"
Height 3 1/8"
Flange Thickness 3/8"
Flange OD 3 1/8"
Bolt Circle Diameter 2 9/16"
Housing OD 2"
Dynamic Load Capacity 350 lb.
Static Load Capacity 615 lb.
Temperature Range -4° F to 176° F
For Shaft Material Stainless Steel, Steel
Mounting Holes 4, 9/32" Diameter
Bearing Type Ball
Housing Type Flange Mount
ID 1.250"
Lubrication Required
With End Seals Yes
Country of Origin Japan
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 8483.20.0010
USMCA Qualifying No
