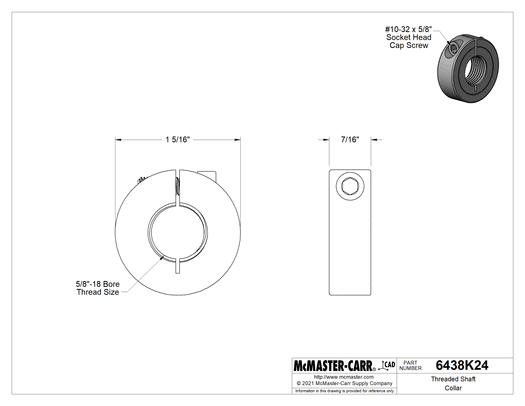

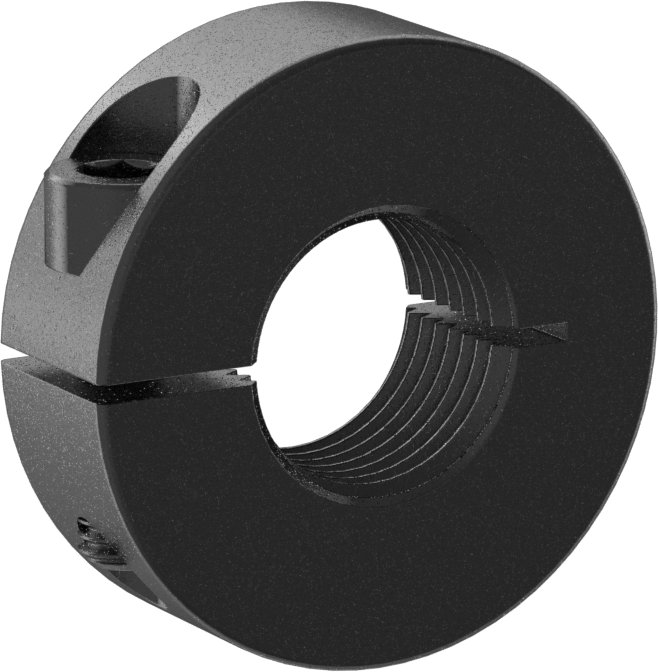

McMaster 6438K24 Threaded Shaft Collar, for 5/8"-18 Thread, One-Piece, Black-Oxide 1215 Carbon Steel

McMaster 6438K24 Threaded Shaft Collar, for 5/8"-18 Thread, One-Piece, Black-Oxide 1215 Carbon Steel

UPC: | Harmonization / Schedule B : 8487.90.0080

Country of Origin: United States | Shipping Weight: 0.2 lbs

$53.00 - $53.00
$53.00
$53.00 - $53.00
$53.00

To install, thread these one-piece collars onto the end of your shaft. They clamp evenly around the shaft to create a strong, mar-free hold. Tighten the clamping screw to secure.

Black-Oxide 1215 Carbon Steel — Black-oxide steel collars have some corrosion resistance.

Material Black-Oxide 1215 Carbon Steel
For Shaft Thread Size 5/8"-18
OD 1 5/16"
Width 7/16"
Screw Type Socket Head
Screw Material Black-Oxide Steel
Number Included 1
Construction One Piece
For Shaft Type Threaded
Shaft Mount Type Clamp On
Thread Direction Right Hand
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 8487.90.0080
USMCA Qualifying No
