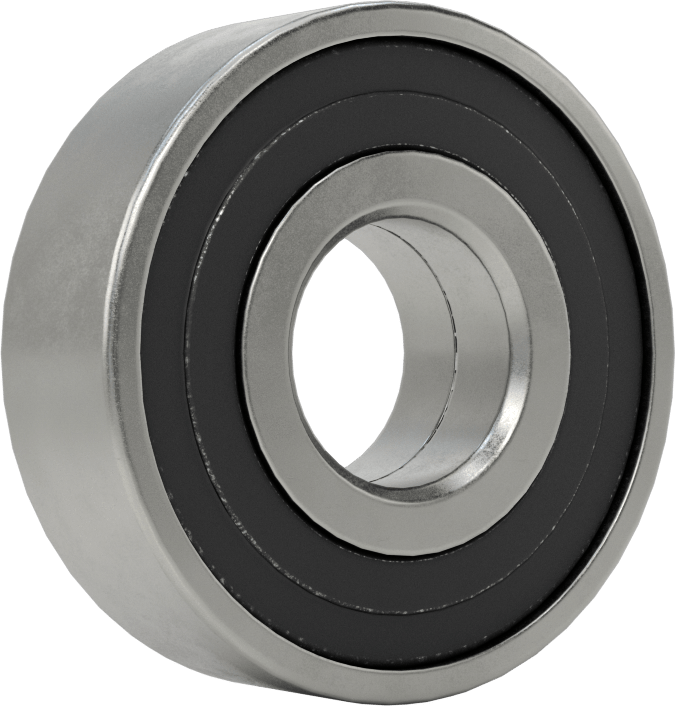

McMaster 6384K77 Steel Ball Bearing, Sealed, Trade No. 3028-2RS, for 5/8" Shaft Diameter, 1300 lb

UPC: | Harmonization / Schedule B : 8482.10.5048

Country of Origin: United States | Shipping Weight: 0.3 lbs

Original price $83.80 - Original price $83.80
Original price
$83.80
$83.80 - $83.80
Current price $83.80

Smoother than smooth—the balls inside these bearings roll nearly friction-free. You’ll often find them on rapidly rotating parts, from the whirring chuck on a power drill to the spinning shaft on an electric motor.

Sealed — The best choice for dirty environments. A barrier seals out dust so it won't gunk up or wear down the balls. However, these bearings retain the most heat since air can't flow through.

Steel — Strong and wear resistant. However, these bearings are best for dry environments since moisture will cause them to rust.

For Shaft Type Round
Bearing Seal Type Sealed
Material Steel

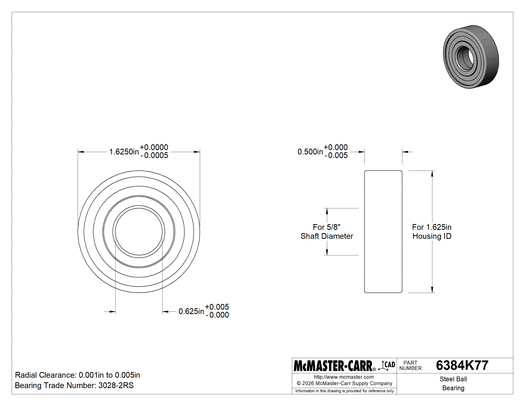

For Shaft Diameter 5/8"
For Housing ID 1 5/8"
Width 1/2"
Dynamic Radial Load Capacity 1,300 lb.
Static Radial Load Capacity 1,000 lb.
Maximum Rotation Speed 2,500 rpm
Temperature Range -20° to 250° F
Bearing Trade Number 3028-2RS
Ball Material Steel
Bearing Construction Single Row
Bearing Type Ball
Cage Material Nylon
For Load Direction Radial
ID 0.625"
OD 1.625"
Radial Clearance 0.001" to 0.005"
Seal Material Buna-N
Shaft Mount Type Press Fit
Lubricant Grease
System of Measurement Inch
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN 1C999
REACH Compliance Not Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 8482.10.5048
USMCA Qualifying Yes
