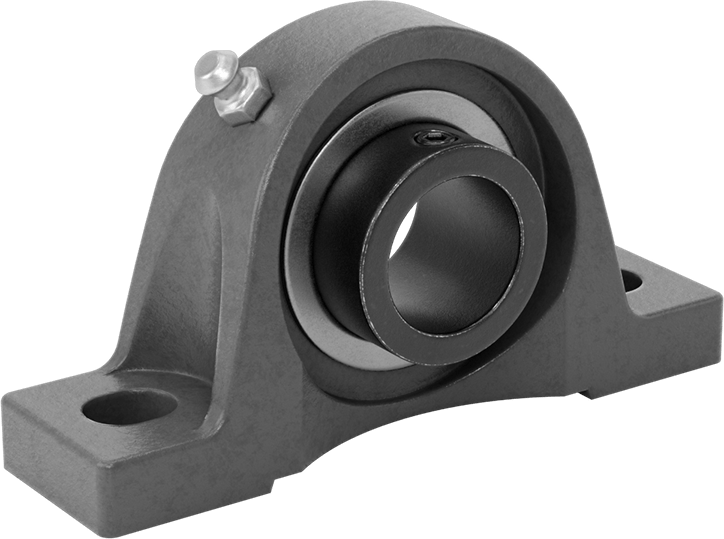

McMaster 6361K42 Eccentric-Lock Shaft Mount Ball Bearing, with Cast Iron Housing, for 1-3/8" Shaft Diameter
UPC: | Harmonization / Schedule B : 8483.20.0010
Country of Origin: Italy | Shipping Weight: 3.5 lbs
UPC: | Harmonization / Schedule B : 8483.20.0010
Country of Origin: Italy | Shipping Weight: 3.5 lbs
Smoother than smooth — the balls inside these bearings roll nearly friction-free. The sturdy housing bolts down to support shafts as they turn.
Lubricate regularly to keep your bearing in tip-top shape. Bearings with seals and shields keep lubricants in and contaminants out, and come packed with grease. Open bearings require initial lubrication and offer less protection against dust and debris.
Powder-Coated Cast Iron Housing—A rugged iron base coated in thick powder that protects against water, mild detergents, and oil. However, if the coating is scratched or chipped, the underlying iron may rust.
Eccentric Lock — An off-center opening wedges against the shaft to grip it as it turns. Eccentric locks won't mar the shaft like a set screw, but the shaft will only rotate in one direction, so they aren't suitable for applications where the load will be reversed.
SKF — Manufactured in Europe with a strong focus on precision. The more precise the bearing, the more efficiently it will run.
Misalignment Capability — Bearings compensate for as much shaft misalignment as the degree listed. This extends the life of the bearing and protects against wear if shafts are slightly askew.
| Mounted Bearing Type | Base Mount |
| Bearing Type | Ball |
| Housing Material | Powder-Coated Cast Iron |
| Shaft Mount Type | Eccentric Lock |
| For Shaft Diameter | 1 3/8" |
| Center Height | 1 13/16" |
| Height | 3 5/8" |
| Length | 6 9/16" |
| Width | 2 1/16" |
| Dynamic Radial Load Capacity | 5,700 lb. |
| Maximum Rotation Speed | 5,300 rpm |
| Bearing Material | Steel |
| Bearing Seal Type | Sealed |
| Misalignment Capability | 2° |
| Manufacturer | SKF |
| Alignment Style | Self-Aligning |
| For Load Direction | Radial |
| For Shaft Type | Round |
| Grease Fitting Included | Yes |
| Grease Fitting Pipe Size | 1/8 |
| Grease Fitting Thread Type | NPT |
| ID | 1.375" |
| ID Tolerance | 0.0002" to 0.00075" |
| Lubricant | Grease with Lithium Thickener |
| Lubrication | Lubricated |
| Hole Length | 13/16" |
| Hole Width | 21/32" |
| Hole Center-to-Center | 5" |
| Number of Holes | 2 |
| Fasteners Included | No |
| Number of Set Screws Included | 1 |
| Set Screw Thread Size | 3/8"-24 |
| Static Radial Load Capacity | 3,400 lb. |
| System of Measurement | Inch |
| Temperature | -20° F to 210° F |
| Weight | 3.5 lb. |
| Country of Origin | Italy |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | 1C999 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | Not Compliant |
| Schedule B Number | 848320.0010 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
| Related Product | Replacement Bearings |
