McMaster 6268T41 Metal Bar Grating Clip, Saddle Clip, 304 Stainless Steel

McMaster 6268T41 Metal Bar Grating Clip, Saddle Clip, 304 Stainless Steel

UPC: | Harmonization / Schedule B : 8302.50.0000

Country of Origin: United States | Shipping Weight: 0.1 lbs

$69.04 - $69.04
$69.04
$69.04 - $69.04
$69.04

Secure grating to your support structure.

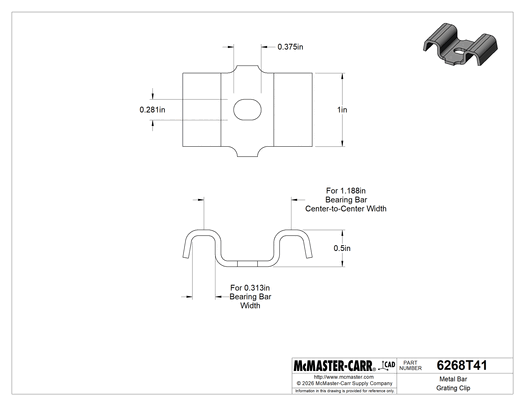

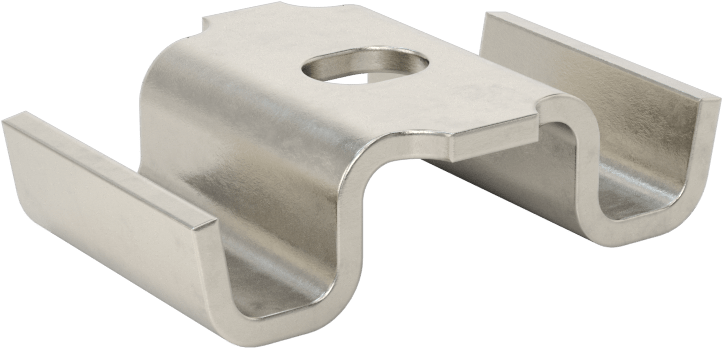

Saddle Clip — Saddle clips bridge two bearing bars. Fasteners require a hole in the support structure as well as a threaded stud and hex nut (not included).

Fastener Type Saddle Clip
Material 304 Stainless Steel
For Grating Height Any
Bearing Bar Width 5/16"
Center-to-Center Width 1 3/16"
For Support Structure Thickness Any
Overall Height 1/2"
Length 9/32"
Width 3/8"
Mounting Hardware Included No
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 8302.50.0000
USMCA Qualifying No
