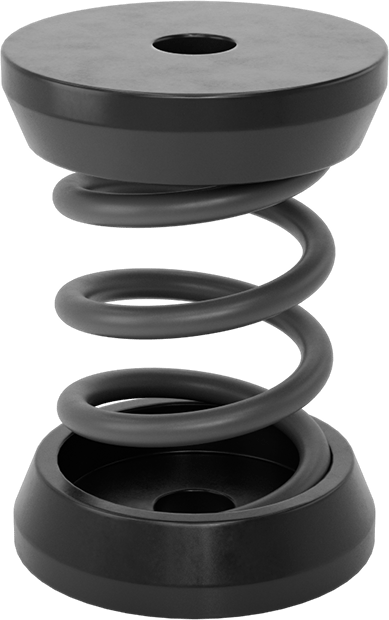

McMaster 6219K116 Shock-Absorbing Spring Vibration-Damping Mount, 1" Deflection @ 130 lbs. Capacity
UPC: | Harmonization / Schedule B : 4016.99.6000
Country of Origin: Thailand | Shipping Weight: 0.91 lbs
UPC: | Harmonization / Schedule B : 4016.99.6000
Country of Origin: Thailand | Shipping Weight: 0.91 lbs
Absorb higher-intensity shocks and vibration than mounts without springs. These mounts compress (deflect) four times farther than other mounts when force is applied to protect shaking, thudding machinery and nearby equipment. They also dissipate the low, slow-moving vibrations other mounts can't handle, such as the rumbling of traffic or a large air compressor.
Style 1—A simple mount that’s easy to install—just place your equipment on top. An antislip base keeps these mounts in place without you needing to anchor them down. If you do need extra hold, they have a spot for a bolt to anchor them. With no adjustment bolt, they are best for machinery that doesn’t need leveling or have side-to-side motion.
| Vibration-Damping Mechanism | Spring |
| Material | Steel |
| Style | 1 |
| Capacity per Mount | 130 lb. |
| Deflection @ Capacity | 1" |
| Shear Capacity per Mount | Not Rated |
| Deflection @ Shear Capacity | Not Rated |

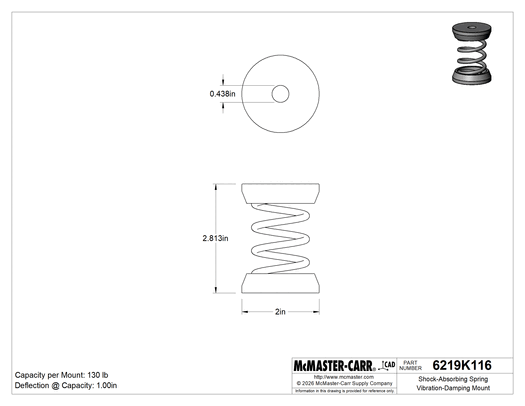

| Overall Height | 2.813" |
| Base Diameter | 2" |
| Color | Black |
| Temperature Range | -10° F to 200° F |
| Fasteners Included | No |
| Number of Holes | 1 |
| Hole Diameter | 0.438" |
| Base Material | Rubber |
| Cushion Material | Rubber |
| Mount Type | Unthreaded Hole |
| Number of Springs | 1 |
| Performance | Low Frequency Vibration Damping, Shock Absorbing |
| System of Measurement | Inch |
| Vibration-Damping Mount Type | Sandwich |
| Country of Origin | Thailand |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 401699.6000 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
