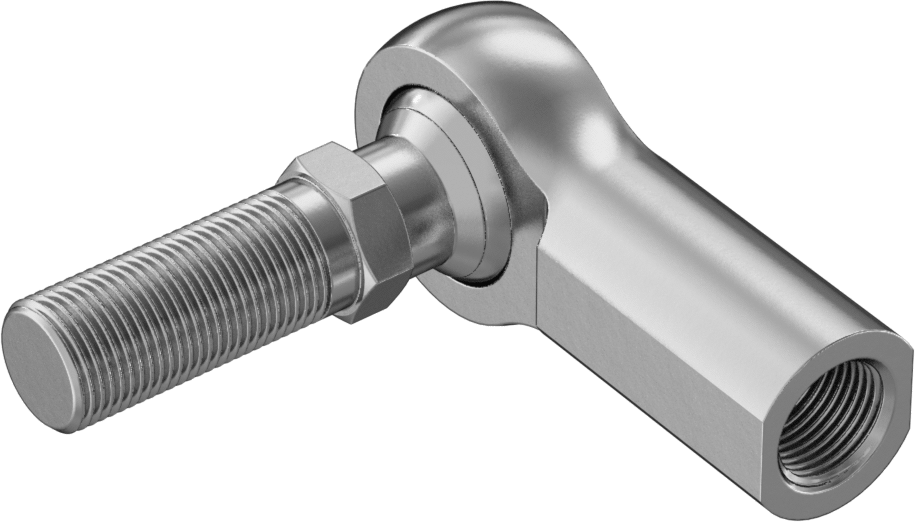

McMaster 60745K881 Ball Joint Linkage with PTFE Liner, Zinc-Plated Alloy Steel, Right-Hand 3/4"-16 Female Shank and Stud

McMaster 60745K881 Ball Joint Linkage with PTFE Liner, Zinc-Plated Alloy Steel, Right-Hand 3/4"-16 Female Shank and Stud

UPC: | Harmonization / Schedule B : 8483.30.8055

Country of Origin: United States | Shipping Weight: 1 lbs

$171.45 - $171.45
$171.45
$171.45 - $171.45
$171.45

A slippery PTFE liner reduces wear and eliminates the need for lubrication. Linkages consist of ball joint rod ends with a ball stud attached to simplify mounting. The stud is machined to fit perfectly inside its housing and swivel in all directions—good for clutches, throttles, and shift control rods. Maximum ball swivel is approximate.

Rod End Type Ball Joint Linkage
Shank Thread Direction Right Hand
Ball Stud Thread Direction Right Hand
Shank Thread Size 3/4"-16
Shank Center Length 2 7/8"
Shank Thread Length 1 3/4"
Ball Stud Thread Size 3/4"-16
Ball Stud Center Length 3"
Ball Stud Length 1 13/16"
Maximum Ball Swivel 50°
Static Radial Load Capacity Not Rated
Temperature Range -65° F to 325° F
Material Zinc-Plated Alloy Steel
Lubrication Not Required
Ball Stud Material Chrome-Plated Bearing Steel
Insert Material Alloy Steel
Liner Material PTFE
Shank Gender Female
Shank Threading Fully Threaded
System of Measurement Inch
Pack Size 1
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
Schedule B Number 848330.8055
USMCA Qualifying Yes
