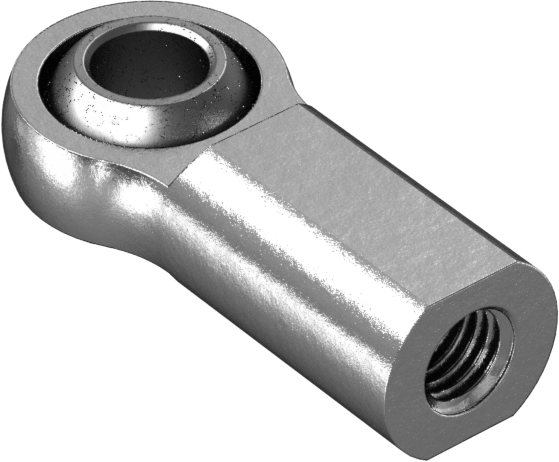

McMaster 59935K515 Ball Joint Rod End, M12 × 1.75 mm Internal Thread, Left-Hand Shank

McMaster 59935K515 Ball Joint Rod End, M12 × 1.75 mm Internal Thread, Left-Hand Shank

UPC: | Harmonization / Schedule B : 8483.30.8090

Country of Origin: United States | Shipping Weight: 1 lb

$93.56 - $93.56
$93.56
$93.56 - $93.56
$93.56

Ball joint rod end with left-hand internal threaded shank for connecting rods and linkages where right-hand threads could loosen.

Rod End Type Ball Joint
Shank Thread Size M12 × 1.75 mm
Center Length 50 mm
Thread Length 24 mm
ID 12 mm
ID Tolerance -0.013 mm to 0.065 mm
Maximum Ball Swivel 27°
Overall Width 30 mm
Overall Thickness 16 mm
Static Radial Load Capacity 5,800 lb.
Material Zinc-Plated Carbon Steel
Shank Thread Direction Left Hand
Ball Material Alloy Steel
Lubrication Required
Relubrication Required
Shank Gender Female
Shank Threading Fully Threaded
System of Measurement Metric
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
