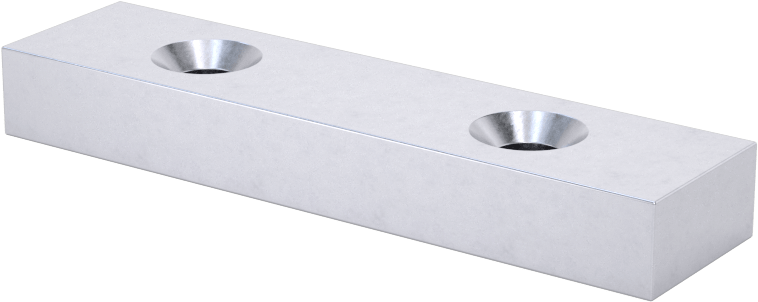

McMaster 5862K939 Nickel-Plated Neodymium Magnet, N45, 1/4" Thick × 1/2" Wide × 2" Long, 28 lb Pull, 2 Countersunk Holes
UPC: | Harmonization / Schedule B : 8505.11.0070
Country of Origin: China | Shipping Weight: 1 lbs
UPC: | Harmonization / Schedule B : 8505.11.0070
Country of Origin: China | Shipping Weight: 1 lbs
Unmatched strength in a compact shape. These magnets have the highest strength-to-size ratio of any magnet, delivering powerful pull force even in tight spaces. Their flat, rectangular shape creates a strong, even pull across surfaces and fits easily into slots or grooves. However, they may lose magnetic strength at high temperatures. Also known as rare earth magnets.
Warning — Maximum pull ratings are based on direct contact with rust-free, unpainted iron surfaces. Variations in material condition will significantly reduce these ratings. Do not use for lifting over people.
Magnetized Through Thickness — Magnetized from one flat face to the other, these magnets deliver a concentrated magnetic force. They’re best for direct contact with flat surfaces.
Nickel Plated — With a nickel-plated finish, these magnets stand up to solvents, salt water, and chemicals better than uncoated neodymium. The plating may wear off over time, so these are not recommended for applications with a lot of friction or wear.
| Magnet Type | Rare Earth |
| Material | Nickel-Plated Neodymium |
| Magnet Grade | N45 |
| Shape | Rectangle |
| Thickness | 1/4" (±0.005") |
| Width | 1/2" (±0.005") |
| Length | 2" (±0.005") |
| Maximum Pull | 28 lbf |
| Flux Density | 13,500 G |
| Maximum Energy Product | 342 kJ/m³ |
| Magnetic Pull Rating | Medium |
| Direction of Magnetization | Through Thickness |
| Sets of Poles | 1 |
| Mount Type | Unthreaded Hole |
| No. of Mounting Holes | 2 |
| Mounting Hole Style | Countersunk, both sides |
| Hole Diameter | 0.17" (±0.005") |
| Countersink Angle | 90° |
| For Screw Size | No. 6 |
| Mounting Hole Center-to-Center | 1" |
| Maximum Temperature | 175°F |
| Color | Silver |
| Fabrication | Sintered |
| Performance | Mountable, Strong Hold |
| System of Measurement | Inch |
| Country of Origin | China |
| DFARS Compliance | Not Specialty Metals Compliant |
| ECCN | 0A999 |
| REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 8505.11.0070 |
| USMCA Qualifying | No |
