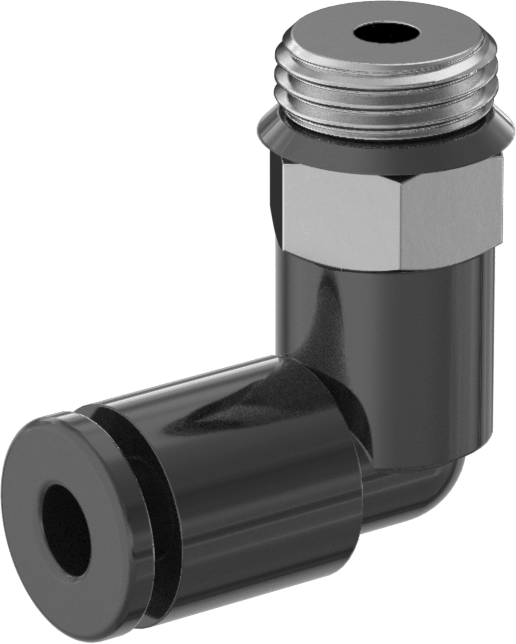

McMaster 5787K38 Push-to-Connect Tube Fitting for Air and Water, Elbow, for 4 mm Tube OD × 1/8 Male Universal Thread

McMaster 5787K38 Push-to-Connect Tube Fitting for Air and Water, Elbow, for 4 mm Tube OD × 1/8 Male Universal Thread

UPC: | Harmonization / Schedule B : 3917.40.0000

Country of Origin: Japan | Shipping Weight: 1 lbs

$46.27 - $46.27
$46.27
$46.27 - $46.27
$46.27

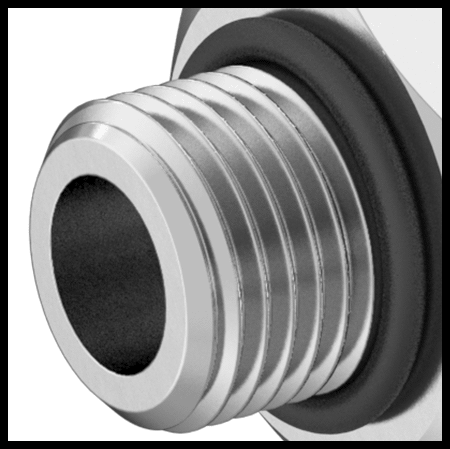

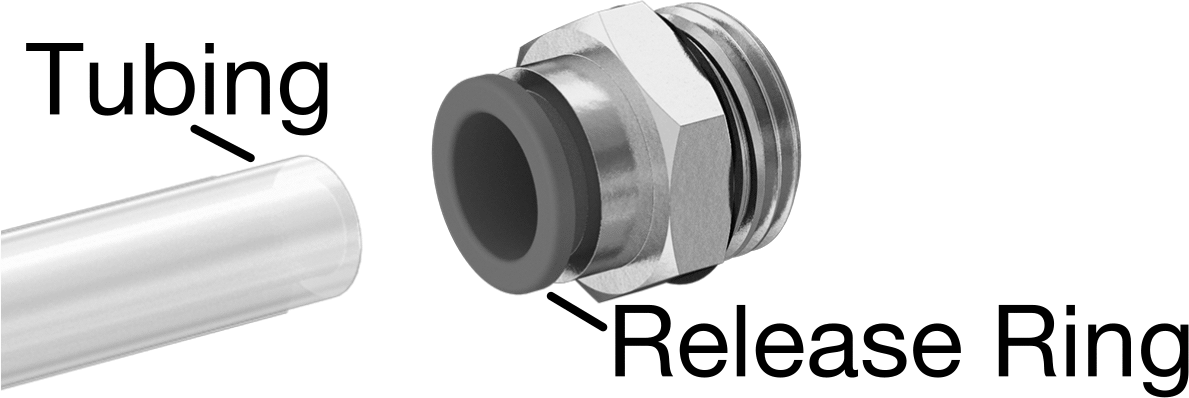

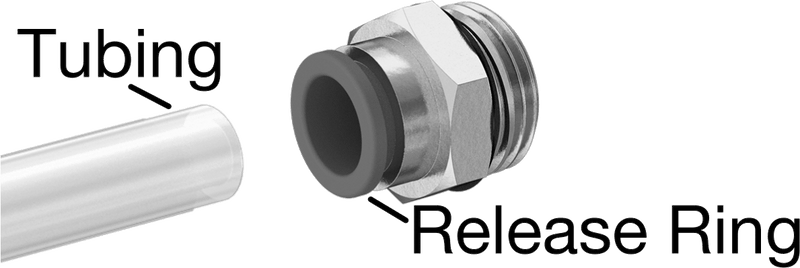

The threads on these fittings mate with NPT, NPTF (Dryseal), BSPT, and BSPP threads. The male threads have a gasket to protect against leaks. Fittings are moisture and corrosion resistant, so they're good for water and humid air applications. Also known as instant fittings, they connect to tubing with a push, and an internal gripping ring and O-ring hold the tubing tight. To disconnect, push on the release ring and pull the tubing out of the fitting.

Static dissipative fittings divert static electricity.

Fittings with intermittent swivel rotate 360° before and after installation as needed to allow movement in the system and to prevent kinking.

Shape 90° Elbow
Type Adapter
For Use With Air
Tube Connection Style Push to Connect
Push-to-Connect Type Standard
Tube Connection Gender Female
O-Ring Material Buna-N Rubber
For Tube OD 4 mm
Pipe Connection Style Threaded
Pipe Connection Gender Male
Thread Type Universal, NPT, NPTF, BSPP, BSPT
Pipe Size 1/8
Tube Connection Material Polybutylene Plastic
Pipe Connection Material Nickel-Plated Brass
Gasket Material 304 Stainless Steel, Buna-N Rubber
Color Black
Clarity Opaque
Release Type Ring
Release Ring Material Plastic
Release Ring Color Black
Maximum Pressure 140 psi @ 72° F
Maximum Vacuum 29 in. of Hg @ 72° F
Vacuum Rating Standard
Temperature Range 32° to 100° F
Electrical Properties Static Dissipative
Surface Resistivity 10^6 ohms/sq.
For Tube Material Nylon Plastic, Polyurethane Rubber
For Tube Hardness Rating Firm
For Tube Hardness Durometer 90A-95A
Swivel Type Intermittent
RoHS RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy
REACH Not Compliant
DFARS Specialty Metals COTS-Exempt
Country of Origin Japan
Schedule B 3917.40.0000
ECCN EAR99
