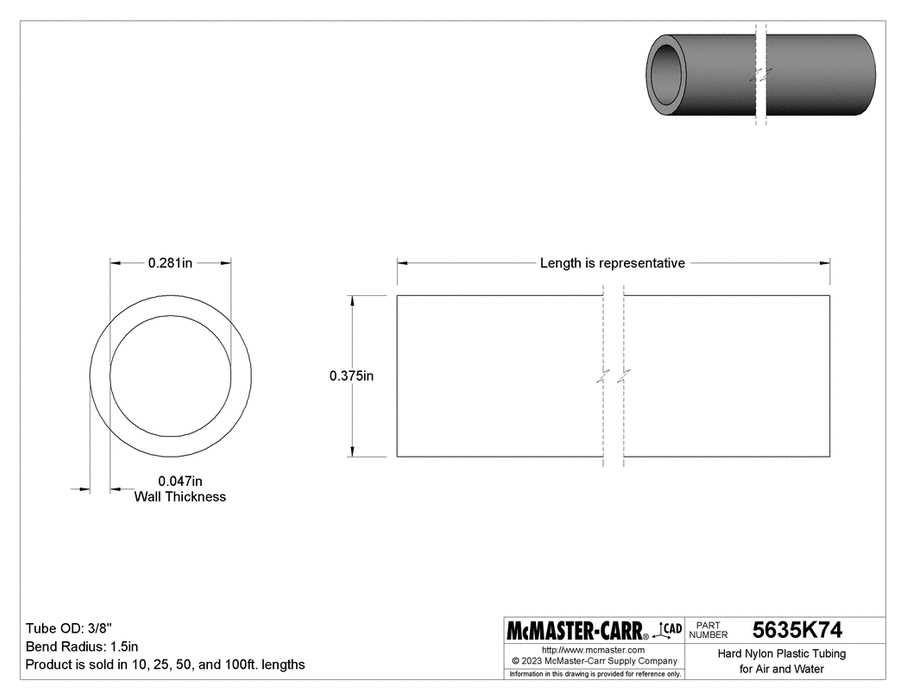

McMaster 5635K74 Opaque Yellow, 9/32" ID, 3/8" OD Hard Nylon Plastic Tubing for Air and Water
UPC: | Harmonization (Schedule B): 3917.32.0000
This general purpose tubing has hard walls, yet is flexible enough for gradual bends. It has excellent strength and durability.
Nylon tubing can handle lower temperatures than polypropylene tubing and can withstand higher pressures. It has slightly softer walls than polypropylene tubing, making it more flexible and impact absorbent.
Opaque tubing doesn’t allow you to see what’s flowing through the line.
|
For Use With
|
Air, Water |
|
Material
|
Nylon Plastic |
|
Tubing Hardness Rating
|
Hard |
|
Hardness
|
Rockwell R78 |
|
End Type
|
Without Fittings |
|
Connection Type
|
Tube |
|
For Connection Style
|
Compression, Push to Connect |
|
Clarity
|
Opaque |
|
ID
|
9/32" |
|
OD
|
3/8" |
|
Wall Thickness
|
3/64" |
|
Flexibility
|
Semi-Flexible |
|
Bend Radius
|
1 1/2" |
|
Temperature Range
|
-60° to 200° F |
|
Maximum Pressure
|
250 psi @ 72° F |
|
Maximum Vacuum
|
28 in. of Hg @ 72° F |
|
Vacuum Rating
|
Standard |
|
Color
|
Yellow |
|
Length
|
50 ft. |
|
RoHS
|
RoHS 3 (2015/863/EU) Compliant |
|
REACH
|
REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
|
DFARS
|
Specialty Metals COTS-Exempt |
|
Country of Origin
|
United States |
|
USMCA Qualifying
|
Yes |
|
Schedule B
|
391732.0000 |
|
ECCN
|
EAR99 |
