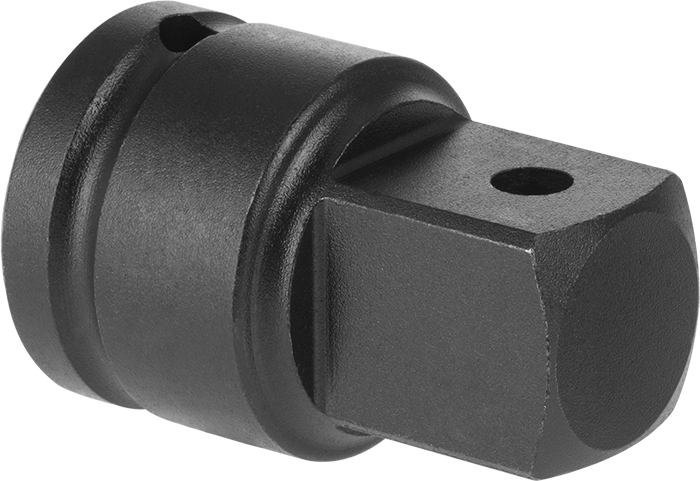

McMaster 5552A103 Impact Square Drive Size Adapter, 3/4" Female x 1" Male

UPC: | Harmonization / Schedule B : 8204.20.0000

Country of Origin: United States | Shipping Weight: 0.9 lbs

Original price $88.80 - Original price $88.80
Original price
$88.80
$88.80 - $88.80
Current price $88.80

Convert from one square drive size to another. The female side of the adapter attaches to your wrench; the male side to your socket. These adapters are made to withstand the high torque and force of impact tools.

3/4" Square Drive—3/4", 1", and 1 1/2" square drive size adapters require a locking retainer on the female end. Use with an impact wrench that has a pin-style socket retainer, or use a socket retaining ring with tools that have a hole- or hole-and-ring style socket retainer.

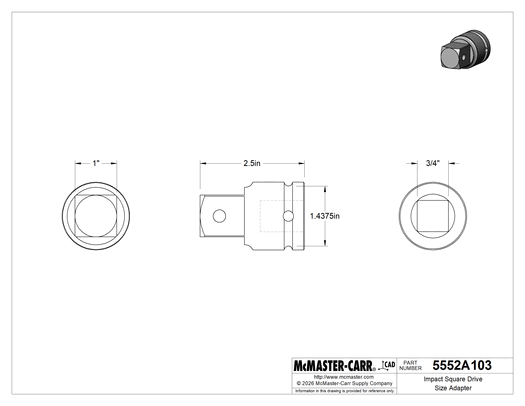

Square Drive Size (Gender) 3/4" (Female) × 1" (Male)
Overall Length 2 1/2"
Compatible Retaining Ring ID 1 7/16"
Material Black-Oxide Steel
Socket Retainer Style Hole
Drive Type Impact
Socket Type Square Drive Size Adapter
Sold As Individual
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance Not Compliant
Schedule B Number 820420.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
Related Product Retaining Rings
