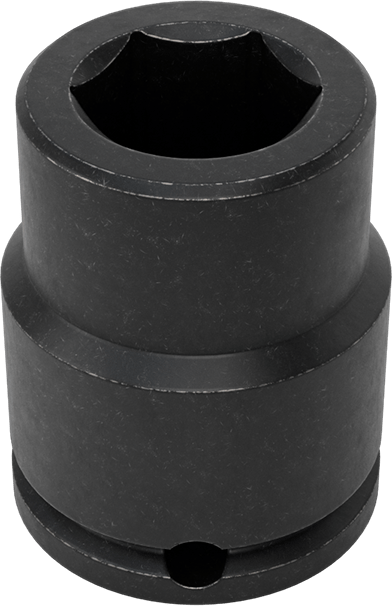

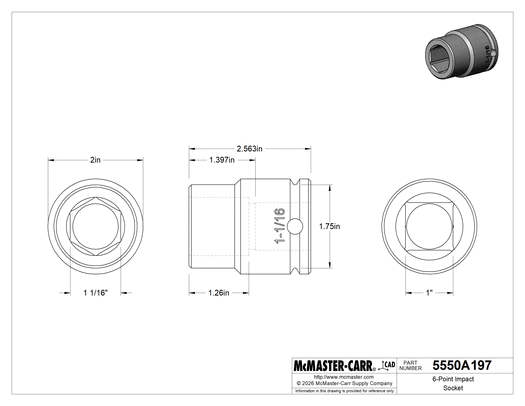

McMaster 5550A197 6-Point Impact Socket, 1" Square Drive, Standard, 1 1/16" Size, 2-9/16" Overall Length
McMaster 5550A197 6-Point Impact Socket, 1" Square Drive, Standard, 1 1/16" Size, 2-9/16" Overall Length
McMaster 5550A197 6-Point Impact Socket, 1" Square Drive, Standard, 1 1/16" Size, 2-9/16" Overall Length
McMaster 5550A197 6-Point Impact Socket, 1" Square Drive, Standard, 1 1/16" Size, 2-9/16" Overall Length
McMaster 5550A197 6-Point Impact Socket, 1" Square Drive, Standard, 1 1/16" Size, 2-9/16" Overall Length
McMaster 5550A197 6-Point Impact Socket, 1" Square Drive, Standard, 1 1/16" Size, 2-9/16" Overall Length
McMaster 5550A197 6-Point Impact Socket, 1" Square Drive, Standard, 1 1/16" Size, 2-9/16" Overall Length
McMaster 5550A197 6-Point Impact Socket, 1" Square Drive, Standard, 1 1/16" Size, 2-9/16" Overall Length

McMaster 5550A197 6-Point Impact Socket, 1" Square Drive, Standard, 1 1/16" Size, 2-9/16" Overall Length

UPC: | Harmonization / Schedule B : 8204.20.0000

Country of Origin: United States | Shipping Weight: 1.35 lbs

$98.65 - $98.65
$98.65
$98.65 - $98.65
$98.65

Achieve the best possible grip on hex fasteners and prevent rounding. These sockets are made to withstand the high torque and force of impact tools.

1" Square Drive—3/4", 1", and 1 1/2" square drive size sockets require a locking retainer. Use with an impact wrench that has a pin-style socket retainer, or use a socket retaining ring with tools that have a hole- or hole-and-ring style socket retainer.

Bolt Clearance Type Standard
Square Drive Size 1"
Drive Size 1 1/16"
Nut 1 17/64"
Bolt 1 25/64"
Compatible Retaining Ring ID 1 3/4"
Material Black-Oxide Steel
Overall Length 2 9/16"
Socket Shape 6-Point
Drive Type Impact
For Drive Style External Hex
OD 2"
Socket Style Standard
Socket Type Socket
Sold As Individual
System of Measurement Inch
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance Not Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 820420.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying Yes
Related Product Retaining Rings
