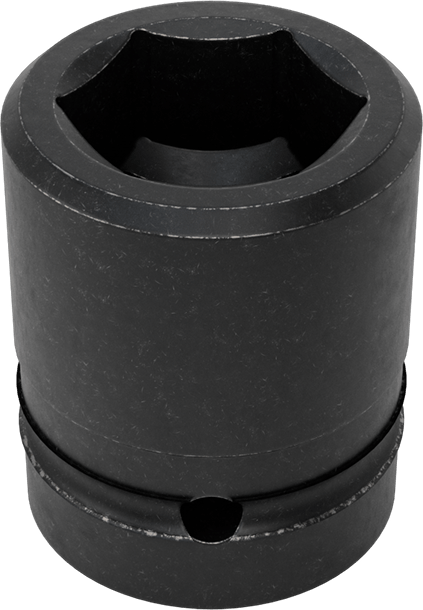

McMaster 5550A188 6-Point Impact Socket, 1" Square Drive, Standard, 1-3/8" Size, 2-11/16" Overall Length

McMaster 5550A188 6-Point Impact Socket, 1" Square Drive, Standard, 1-3/8" Size, 2-11/16" Overall Length

Name: McMaster 5550A188 6-Point Impact Socket, 1" Square Drive, Standard, 1-3/8" Size, 2-11/16" Overall Length
Brand: McMaster-Carr
Price: 100.05 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 8204.20.0000

Country of Origin: United States | Shipping Weight: 2.0 lbs

$100.05 - $100.05

$100.05

$100.05 - $100.05

$100.05

Achieve the best possible grip on hex fasteners and prevent rounding. These sockets are made to withstand the high torque and force of impact tools.

1" Square Drive—3/4", 1", and 1 1/2" square drive size sockets require a locking retainer. Use with an impact wrench that has a pin-style socket retainer, or use a socket retaining ring with tools that have a hole- or hole-and-ring style socket retainer.

Bolt Clearance Type	Standard
Square Drive Size	1"
Drive Size	1 3/8"
Nut	25/32"
Bolt	1 1/2"
Compatible Retaining Ring ID	2"
Material	Black-Oxide Steel
Overall Length	2 11/16"
Socket Shape	6-Point
Drive Type	Impact
For Drive Style	External Hex
OD	2 5/32"
Socket Style	Standard
Socket Type	Socket
Sold As	Individual
System of Measurement	Inch
Country of Origin	United States
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	Not Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	820420.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes
Related Product	Retaining Rings
