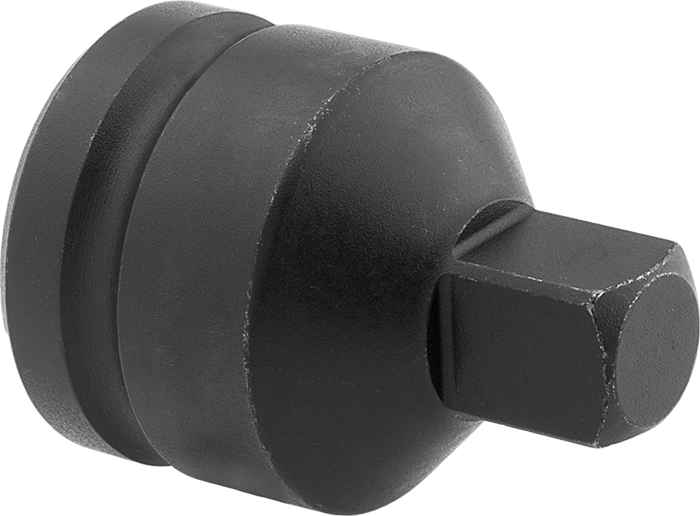

McMaster 5550A14 Impact Square Drive Size Adapter, 1" Female x 3/4" Male

UPC: | Harmonization / Schedule B : 8204.20.0000

Country of Origin: United States | Shipping Weight: 1.4 lbs

Original price $118.78 - Original price $118.78
Original price
$118.78
$118.78 - $118.78
Current price $118.78

Convert from one square drive size to another. The female side of the adapter attaches to your wrench; the male side to your socket. These adapters are made to withstand the high torque and force of impact tools.

1" Square Drive—3/4", 1", and 1 1/2" square drive size adapters require a locking retainer on the female end. Use with an impact wrench that has a pin-style socket retainer, or use a socket retaining ring with tools that have a hole- or hole-and-ring style socket retainer.

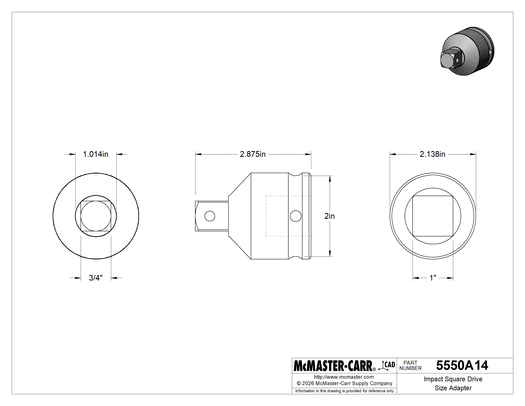

Square Drive Size (Gender) 1" (Female) × 3/4" (Male)
Overall Length 2 7/8"
Compatible Retaining Ring ID 2"
Material Black-Oxide Steel
Socket Retainer Style Hole
Drive Type Impact
Socket Type Square Drive Size Adapter
Sold As Individual
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance Not Compliant
Schedule B Number 820420.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
Related Product Retaining Rings
