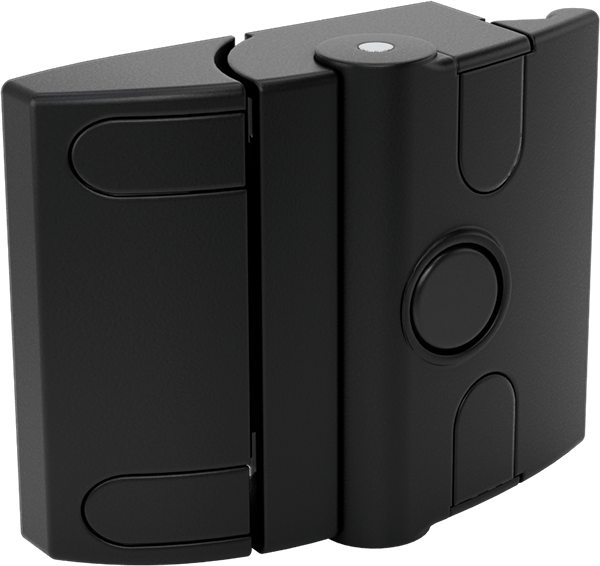

McMaster 5537T535 T-Slotted Framing, Push-to-Close Latch for 1.5"&40mm High Single Rail
McMaster 5537T535 T-Slotted Framing, Push-to-Close Latch for 1.5"&40mm High Single Rail
McMaster 5537T535 T-Slotted Framing, Push-to-Close Latch for 1.5"&40mm High Single Rail
McMaster 5537T535 T-Slotted Framing, Push-to-Close Latch for 1.5"&40mm High Single Rail
McMaster 5537T535 T-Slotted Framing, Push-to-Close Latch for 1.5"&40mm High Single Rail
McMaster 5537T535 T-Slotted Framing, Push-to-Close Latch for 1.5"&40mm High Single Rail
McMaster 5537T535 T-Slotted Framing, Push-to-Close Latch for 1.5"&40mm High Single Rail
McMaster 5537T535 T-Slotted Framing, Push-to-Close Latch for 1.5"&40mm High Single Rail

McMaster 5537T535 T-Slotted Framing, Push-to-Close Latch for 1.5"&40mm High Single Rail

UPC: | Harmonization / Schedule B : 8302.49.7500

Country of Origin: China | Shipping Weight: 0.3 lbs

$107.36 - $107.36
$107.36
$107.36 - $107.36
$107.36

Keep doors and panels on T-slotted framing workbenches, cabinets, and enclosures securely shut.

Push-to-close latches have a return spring that snaps tight with a push and releases with a pull.

Release Knobs — Offer a means of escape if a door closes with someone inside an enclosure.

Latch Connection Rail-to-Rail
With Handle Yes
Push-to-Close Latch Type Nonlocking
Single 1 1/2", 40 mm
Double and Quad 3", 80 mm
Triple 4 1/2", 120 mm
Width 3 7/8"
Height 3 1/16"
Handle Style Edge Pull
Color Black
Material Powder-Coated Aluminum
Installation Type Drop In
Thread Size M6
Thread Length 14 mm
Included Yes
Framing Type T-Slotted
Latch Type Push-to-Close
Lock Type Nonlocking
System of Measurement Inch, Metric
T-Slotted Framing Component Lock and Latch
Country of Origin China
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 830249.7500
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
Related Product Release Knobs
