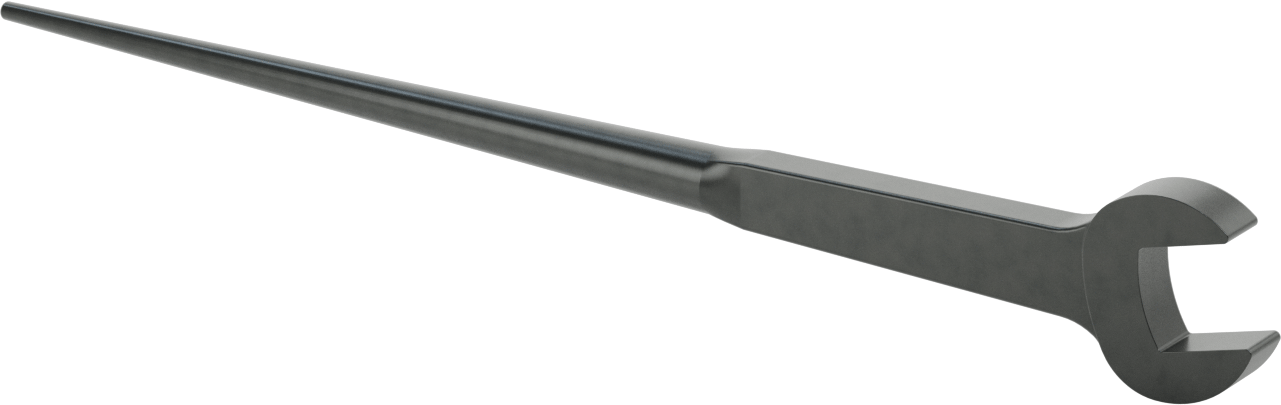

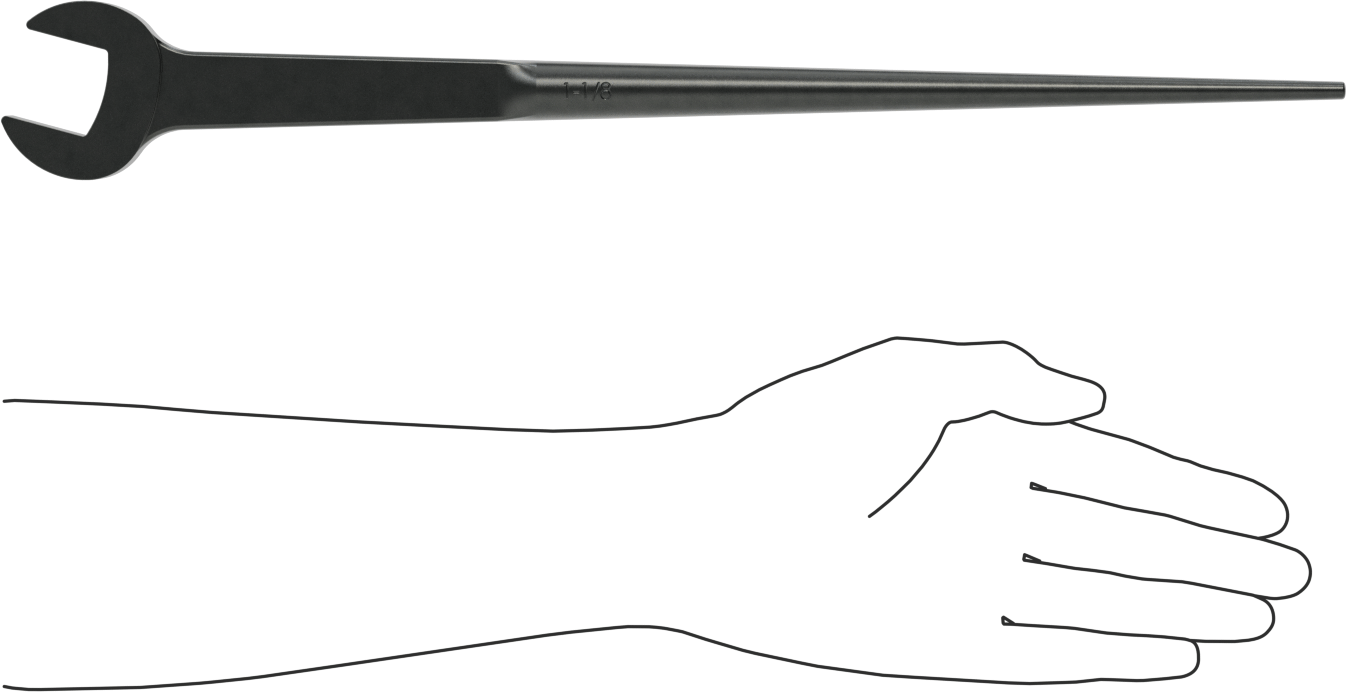

McMaster 5405A25 Open-End Wrench for Hole Alignment (Spud Wrench), 1-1/8" Size, 17" Long, Black-Oxide Steel

UPC: | Harmonization / Schedule B : 8204.11.0030

Country of Origin: United States | Shipping Weight: 2 lbs

Original price $102.91 - Original price $102.91
Original price
$102.91
$102.91 - $102.91
Current price $102.91

Line up holes with the pointed end to smoothly insert bolts, then flip these wrenches over to tighten them in no time. They’re often used to align girders or beams in steel framing, repair machinery, and assemble pipelines. Also known as spud, structural, and construction wrenches.

Round Opening — The rounded edges spread force evenly to prevent stripping your fasteners. Use them on hex-head fasteners.

Black-Oxide Steel — The dark, matte coating protects these wrenches from wear and won't flake off. They offer minimal corrosion resistance, though, so they're best for dry environments.

Number of Heads 1
Relative Length Standard
Application Hole Alignment
Head Style Standard
Wrench Opening Shape Round
Drive Size 1 1/8"
Overall Length 17"
Opening Angle 15°
Head Thickness 5/8"
Material Black-Oxide Steel
Specifications Met ASME B107.100
For Drive Style External Square, External Hex
For Use With Screws and Nuts
Ratcheting Nonratcheting
System of Measurement Inch
Wrench Style Open End
Wrench Type Standard
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 8204.11.0030
USMCA Qualifying Yes
