McMaster 5344K31 Twist-Claw Hose Coupling, Iron, 3/4 NPT Female End

McMaster 5344K31 Twist-Claw Hose Coupling, Iron, 3/4 NPT Female End

Name: McMaster 5344K31 Twist-Claw Hose Coupling, Iron, 3/4 NPT Female End
Brand: McMaster-Carr
Price: 55.36 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7307.99.2000

Country of Origin: United States | Shipping Weight: 0.45 lbs

$55.36 - $55.36

$55.36

$55.36 - $55.36

$55.36

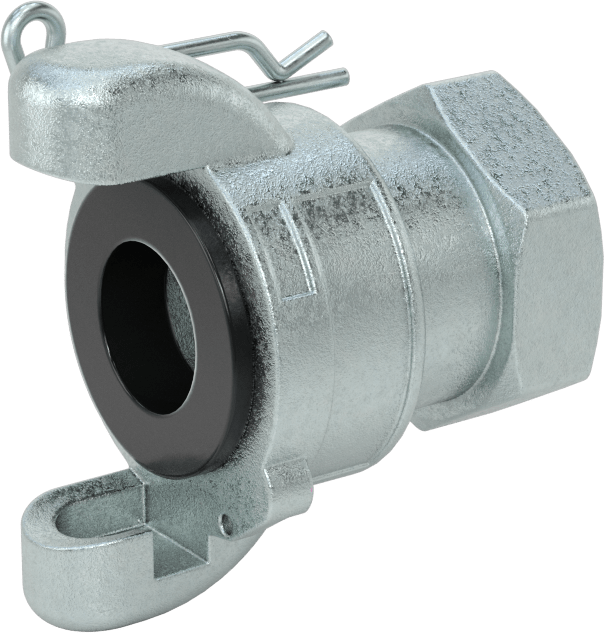

Also known as Chicago and universal couplings, these have an identical claw-style head that allows you to connect to another Chicago twist-claw hose coupling, regardless of the pipe size or barbed hose ID. To connect, push two couplings together with a quarter twist. Couplings have a safety clip and lanyard to prevent accidental disconnection.

Iron couplings are stronger and more durable than other metal couplings. Use in noncorrosive environments.

Warning: There is no valve in these couplings. Stop the flow of air and water before you disconnect the line.

For Use With	Air, Water
Shape	Straight
Type	Adapter
Flow Control	Open
Connection Style	Claw
Claw Connection Type	Twist Claw
Connection Style	Threaded
Gender	Female
Pipe Size	3/4
Thread Type	NPT
Material	Zinc-Plated Iron
Gasket Material	SBR Rubber
Maximum Pressure	150 psi @ 72° F
Maximum Vacuum	Not Rated
Vacuum Rating	Standard
Temperature Range	-20° to 160° F
Length	2 1/2"
Compatible With	Dixon Air King
Includes	Safety Clip with Lanyard
RoHS	RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy
REACH	Not Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	United States
USMCA Qualifying	No
Schedule B	730799.2000
ECCN	EAR99
Related Products	Replacement Gaskets (10/Pkg.)
