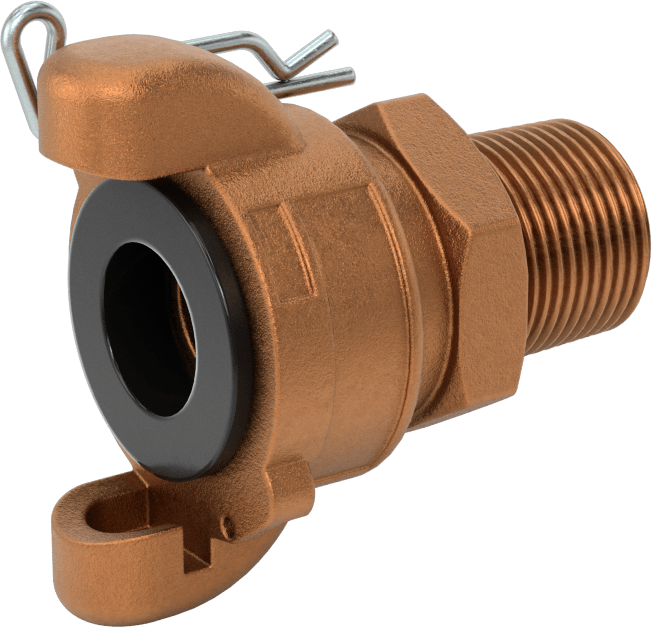

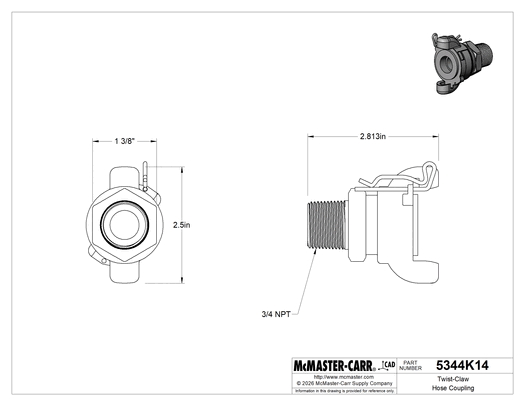

McMaster 5344K14 Twist-Claw Hose Coupling, Brass, 3/4 NPT Male End

McMaster 5344K14 Twist-Claw Hose Coupling, Brass, 3/4 NPT Male End

Name: McMaster 5344K14 Twist-Claw Hose Coupling, Brass, 3/4 NPT Male End
Brand: McMaster-Carr
Price: 87.87 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7419.80.5010

Country of Origin: China | Shipping Weight: 0.45 lbs

$87.87 - $87.87

$87.87

$87.87 - $87.87

$87.87

The claw-style head mates with any Chicago twist-claw hose coupling, regardless of the pipe size or barbed hose ID. Also known as Chicago or universal couplings, they connect with a push and quarter turn. The included safety clip and lanyard prevent accidental disconnection.

Shape	Straight
Fitting Type	Adapter
Material	Brass
Pipe Size	3/4
Maximum Pressure @ Temperature	150 psi @ 72° F
Maximum Vacuum @ Temperature	Not Rated
Temperature	-20° F to 160° F
Includes	Safety Clip with Lanyard
Compatible With	Dixon Air King
Connects To	Hose × Pipe
Fitting Connection	Twist Claw × Threaded
Flow Control Type	Open
For Use With	Air, Water
Gasket Material	SBR
Gender	Male
Length	2 13/16"
Performance	Corrosion Resistant
Pressure Rating	Low Pressure
Relative Vacuum Rating	Standard
System of Measurement	Inch
Thread Type	NPT
Country of Origin	China
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	Not Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant with Exemptions
RoHS Exemptions	6(c)
Schedule B Number	741980.5500
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	No
Related Products	Gaskets
