Hose is EPDM, which is the most common material for air applications. It locks in place when pulled out of the reel, and it retracts with a quick tug.

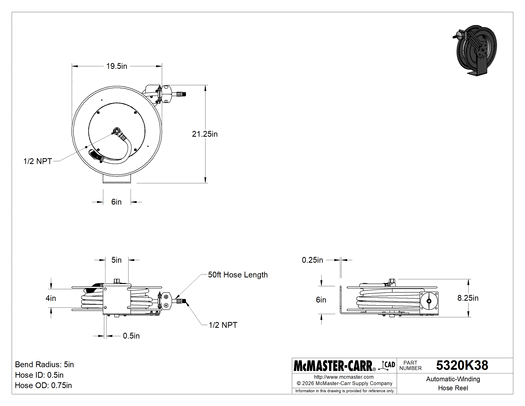

6" Lg. x 6" Wd. Mounting Base—Reels with 6" Lg. x 6" Wd. mounting base are for applications where the hose is pulled straight out of the reel.
Ceiling Mount — For reels with multiple mounting options (ceiling, floor, and wall), additional mounting brackets are sold separately that allow them to pivot or mount to a beam.
Floor Mount — For reels with multiple mounting options (ceiling, floor, and wall), additional mounting brackets are sold separately that allow them to pivot or mount to a beam.
Wall Mount — For reels with multiple mounting options (ceiling, floor, and wall), additional mounting brackets are sold separately that allow them to pivot or mount to a beam.
| For Use With |
Air |
| Temperature |
-40° F to 200° F |
| Connection |
Outlet Pipe x Inlet Pipe |
| Pipe Size |
1/2 x 1/2 |
| Fittings |
Brass Threaded NPT Male x Brass Threaded NPT Female |
| Threaded Female Fitting Seal Type |
Buna-N Rubber Gasket |
| ID |
1/2" |
| OD |
3/4" |
| Length |
50 ft. |
| Bend Radius |
5" |
| Maximum Pressure @ Temperature |
300 psi @ 72° F |
| Clarity |
Opaque |
| Material |
EPDM |
| Cover Material |
EPDM |
| Interior Texture |
Smooth |
| Reinforcement |
Yarn |
| Location |
Ceiling, Floor, Wall |
| Base Length |
6" |
| Base Width |
6" |
| Hole Diameter |
1/2" |
| Number of Holes |
4 |
| Fasteners Included |
No |
| Type |
Open |
| Winding Method |
Automatic |
| Height |
21 1/4" |
| Width |
8 1/4" |
| Depth |
19 1/2" |
| Material |
Powder-Coated Steel |
| Color |
Blue |
| Hose Included |
Yes |
| Country of Origin |
United States |
| DFARS Compliance |
Specialty Metals COTS-Exempt |
| Export Control Classification Number (ECCN) |
EAR99 |
| REACH Compliance |
Not Compliant |
| RoHS Compliance |
RoHS 3 (2015/863/EU) Compliant with Exemptions |
| RoHS Exemptions |
6(c) |
| Schedule B Number |
400932.0050 |
| U.S.–Mexico–Canada Agreement (USMCA) Qualifying |
Yes |
