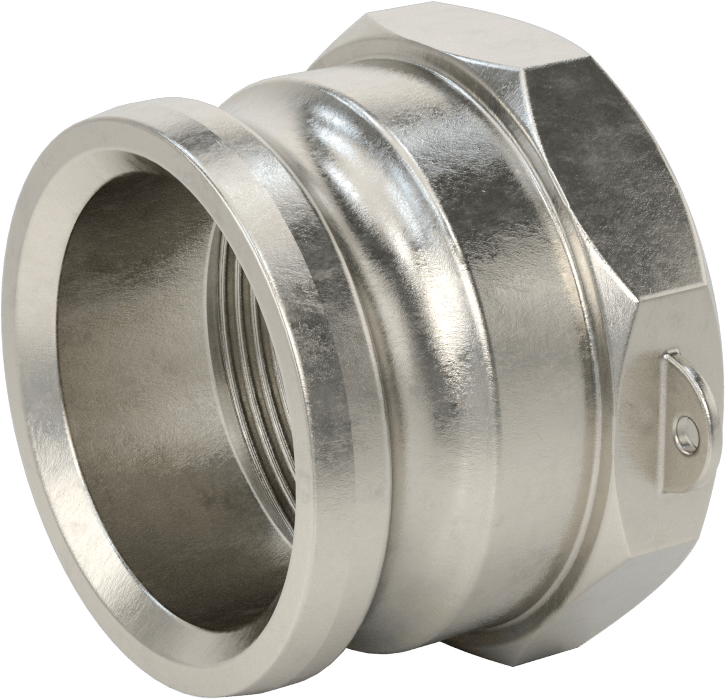

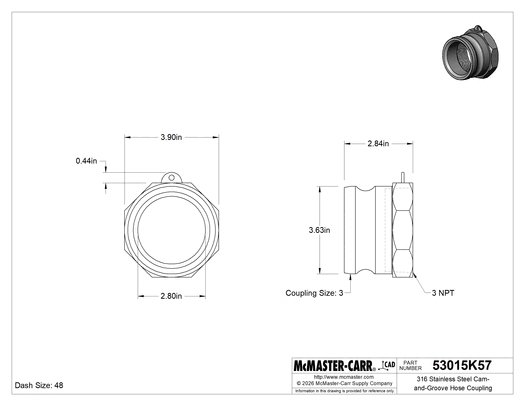

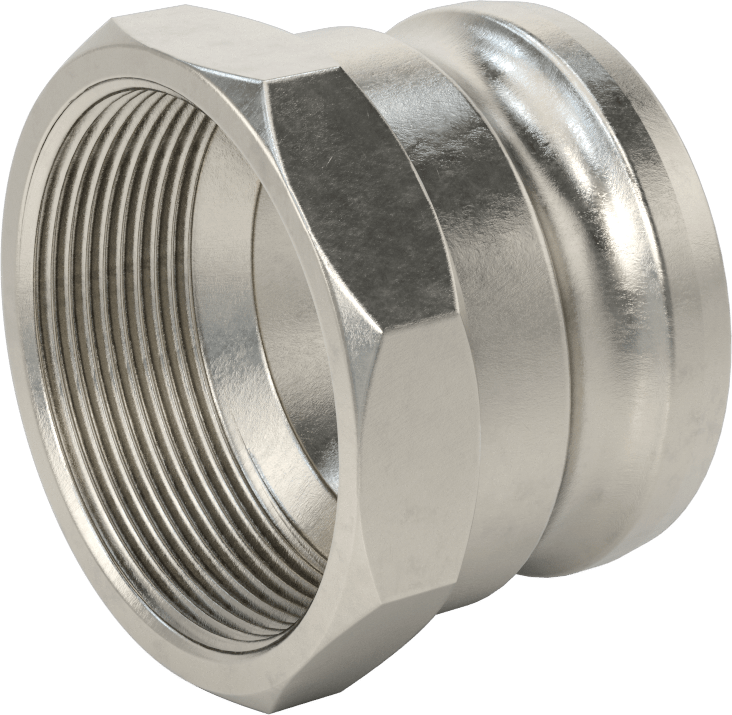

McMaster 53015K57 316 Stainless Steel Cam-and-Groove Hose Coupling Plug, 3 Coupling Size × 3 NPT Female, 200 psi
UPC: | Harmonization / Schedule B : 7307.29.0000
Country of Origin: United States | Shipping Weight: 2 lbs
UPC: | Harmonization / Schedule B : 7307.29.0000
Country of Origin: United States | Shipping Weight: 2 lbs
Made of metal, these couplings have better durability than plastic cam-and-groove couplings. A complete coupling consists of a plug and a socket (both sold separately) that allow you to quickly connect and disconnect medium-to large-diameter hose lines. To connect, insert the plug into the socket and press the levers down. The levers fit snugly into the groove on the plug’s body and force the plug against the gasket to form a tight seal. To disconnect, lift both levers and pull out the plug. Couplings are compatible with Andrews, Dixon, Ever-Tite, and PT cam-and-groove couplings.
316 stainless steel fittings have excellent corrosion resistance.
Note: To ensure a correct fit, make sure that the plug and socket have the same coupling size.
Warning: Relieve all pressure before disconnecting the couplings. Do not use cam-and-groove couplings with compressed air or gas.
Plugs with female threaded end are also known as A adapters.
| For Use With | Citric Acid, Diesel Fuel, Gasoline, Hydraulic Fluid |
| Shape | Straight |
| Type | Adapter |
| Cam-and-Groove Component | Plug |
| Flow Control | Open |
| Connection Style | Cam-and-Groove Male × Threaded Female |
| Coupling Size | 3 |
| Plug OD | 3 5/8" |
| Pipe Size | 3 |
| Thread Type | NPT |
| Dash Size | 48 |
| Material | 316 Stainless Steel |
| Maximum Pressure | 200 psi @ 72° F |
| Temperature Range | -65° to 250° F |
| Length | 2 27/32" |
| Compatible With | Andrews, Dixon, Ever-Tite, PT Coupling Cam-and-Groove |
| Specifications Met | Fed. Spec. A-A-59326 |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| REACH Compliance | Not Compliant |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| Country of Origin | United States |
| USMCA Qualifying | Yes |
| Schedule B Number | 7307.29.0000 |
| ECCN | 2B999 |
