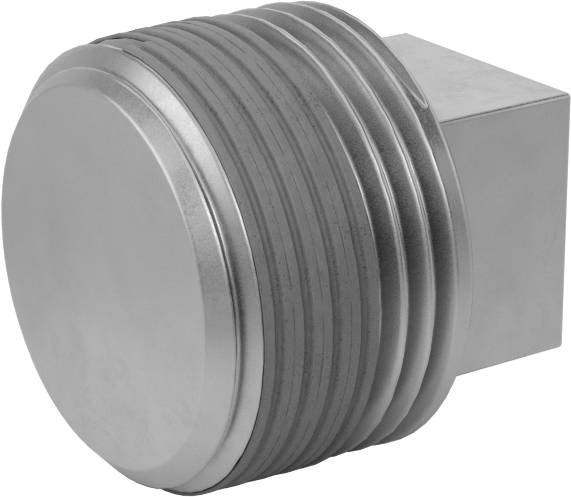

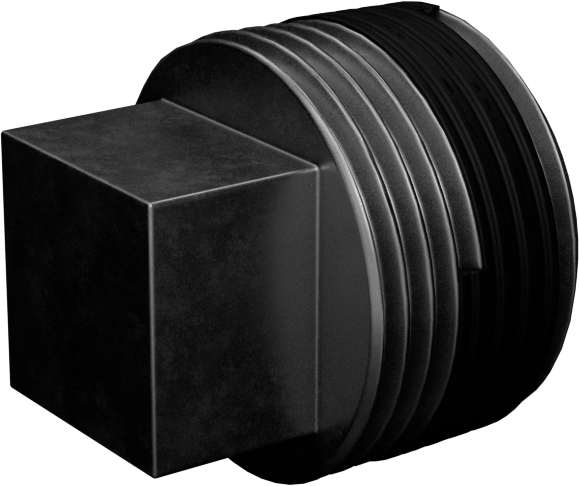

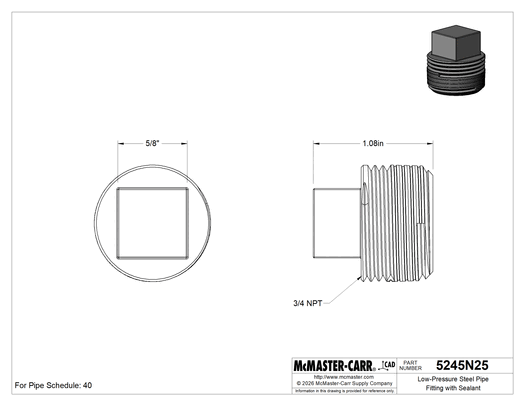

McMaster 5245N25 Low-Pressure Steel Pipe Fitting with Sealant, Plug, External Square Drive, 3/4 NPT Male, Class 150

UPC: | Harmonization / Schedule B : 7307.99.4000

Country of Origin: United States | Shipping Weight: 0.2 lbs

Original price $38.04 - Original price $38.04
Original price
$38.04
$38.04 - $38.04
Current price $38.04

To prevent leaks in low-pressure lines, the male threads on these fittings have an acrylic sealant already applied for extra protection. Also known as Pressure Class 125 or 150 fittings. Made of either iron or steel, they’re best in noncorrosive environments. Even with sealant, threaded connections can be taken apart for maintenance and repair.

Pressure Rating Low Pressure
Fitting Seal Type Thread Sealant
Shape Cap and Plug
Drive Style External Square
Fitting Type Plug
Fitting Connection NPT Male
Pipe Size 3/4
Construction Solid
Pressure Class 150
Body Shape Square
Material Steel
Maximum Pressure @ Temperature 150 psi @ 72° F
Connects To Pipe
Features Acrylic Thread Sealant
For Pipe Material Iron, Steel
For Pipe Schedule 40
For Use With Air, Diesel Fuel, Gasoline, Natural Gas, Oil, Water
Length 1 5/64"
Specifications Met SAE J531
System of Measurement Inch
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 7307.99.4000
USMCA Qualifying Yes
