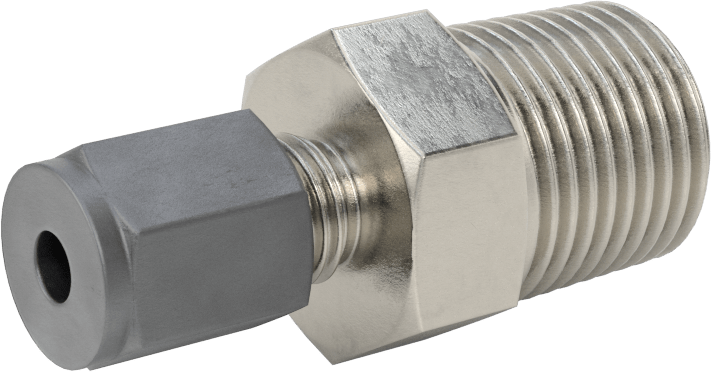

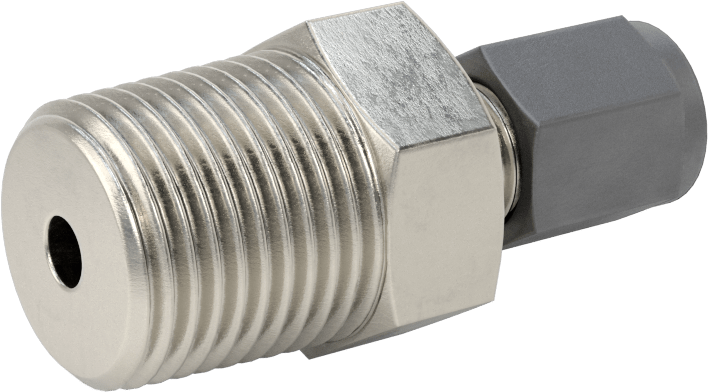

McMaster 52245K261 Compression Fitting for SS Tubing, 316 SS Straight Adapter, for 1/4" Tube OD × 1/2 NPT Male, 5000 psi

McMaster 52245K261 Compression Fitting for SS Tubing, 316 SS Straight Adapter, for 1/4" Tube OD × 1/2 NPT Male, 5000 psi

UPC: | Harmonization / Schedule B : 7307.22.5000

Country of Origin: United States | Shipping Weight: 0.3 lbs

$139.45 - $139.45
$139.45
$139.45 - $139.45
$139.45

A single sleeve (ferrule) bites into tubing as you tighten the nut, creating a strong seal. The nut and sleeve are included. Fittings are also known as flareless fittings or bite fittings. Use them in low- to medium-pressure applications.

316 stainless steel fittings have excellent corrosion resistance.

Shape Straight
Type Adapter
For Use With Air, Hydraulic Fluid, Water
Compression End Standard, Female, Dash 04, 1/4" OD, 0.028" Wall
Threaded End NPT Male, Dash 08, 1/2 Pipe Size
O-Ring Material Buna-N Rubber
Material 316 Stainless Steel
Nut Material 316 Stainless Steel
Sleeve Material 17-4 PH Stainless Steel
Maximum Pressure 5,000 psi @ 72° F
Maximum Vacuum Not Rated
Temperature Range -420° to 1200° F

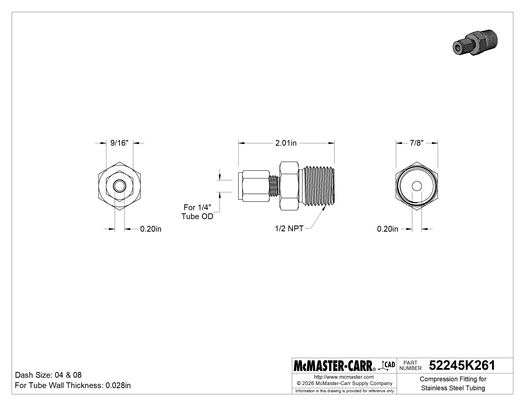

Length 2"
For Tube Material 304 Stainless Steel, 316 Stainless Steel
For Tube Specifications Met ASTM A269
For Tube Fabrication Seamless
Specifications Met SAE J514
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
DFARS Compliance Specialty Metals COTS-Exempt
Country of Origin United States
USMCA Qualifying Yes
Schedule B Number 7307.22.5000
ECCN 2B999
