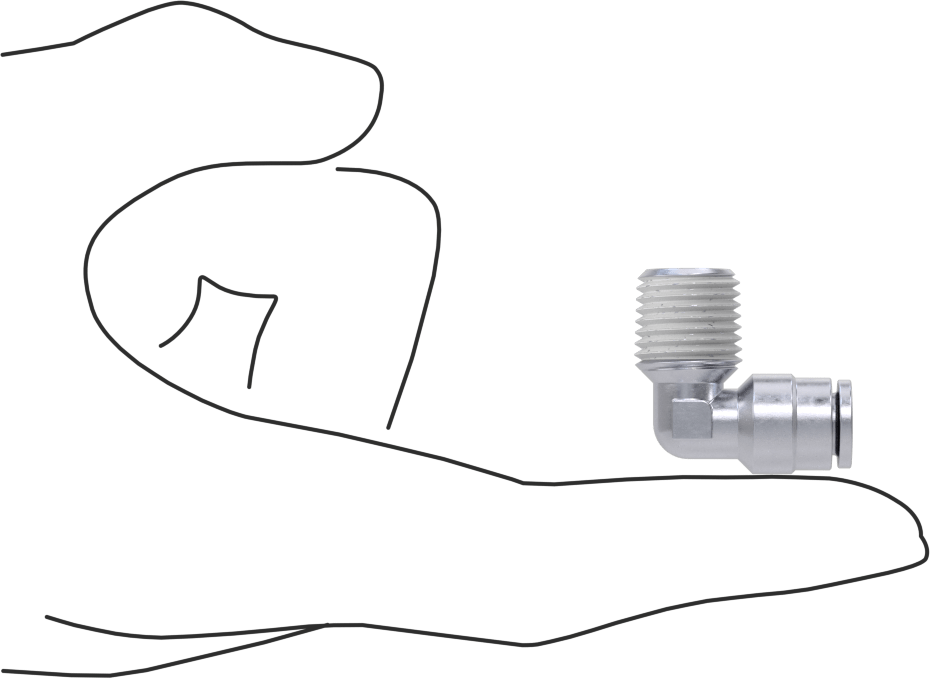

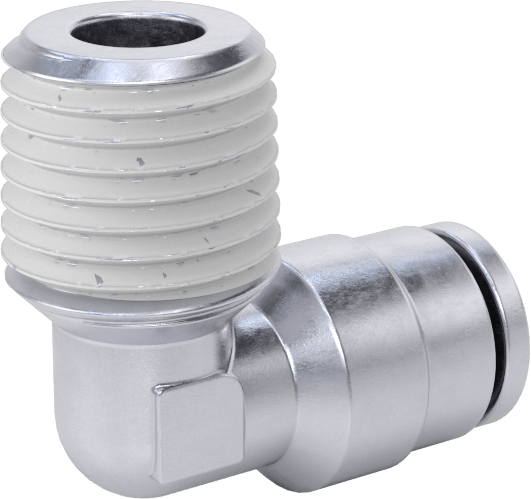

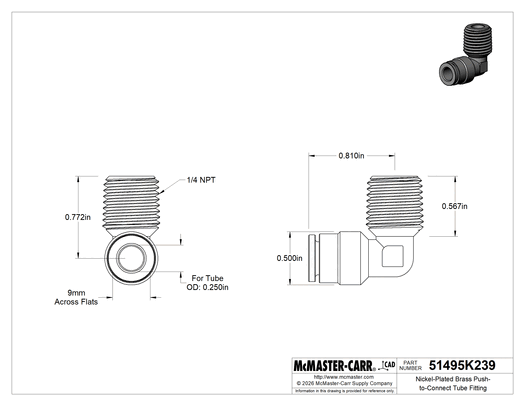

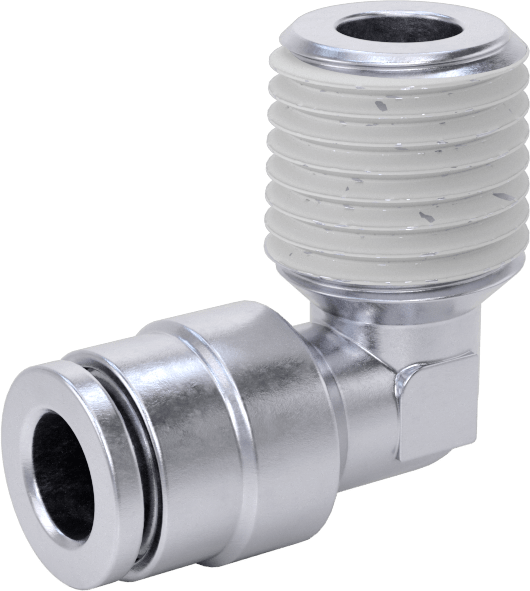

McMaster 51495K239 Nickel-Plated Brass Push-to-Connect Tube Fitting, 90° Elbow Adapter, for 1/4" Tube OD × 1/4 NPT Male, for Air

UPC: | Harmonization / Schedule B : 7412.20.0000

Country of Origin: Czech Republic | Shipping Weight: 0.1 lbs

Original price $46.56 - Original price $46.56
Original price
$46.56
$46.56 - $46.56
Current price $46.56

Made of nickel-plated brass, these fittings have better corrosion resistance than unplated brass fittings. Also known as instant fittings, they connect to tubing with a push, and an internal gripping ring and O-ring hold the tubing tight. To disconnect, push on the release ring or sleeve and pull the tubing out of the fitting.

Fittings with thread sealant offer extra protection against leaks.

Shape 90° Elbow
Type Adapter
For Use With Air, Lubricated Air
Push-to-Connect End Standard, Female, for 1/4" Tube OD, Buna-N O-Ring
Threaded End NPT Male, 1/4 Pipe Size
Material Nickel-Plated Brass
Release Type Ring
Release Ring Material Nickel-Plated Brass
Maximum Pressure 230 psi @ 72° F
Maximum Vacuum 28 in. of Hg @ 72° F
Temperature Range 0° to 140° F
For Tube Material Nylon Plastic, Polyethylene Plastic, Polyurethane Rubber
Features Thread Sealant
RoHS Compliance RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy
REACH Compliance REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant
DFARS Compliance Specialty Metals COTS-Exempt
Country of Origin Czech Republic
Schedule B Number 7412.20.0000
ECCN EAR99
