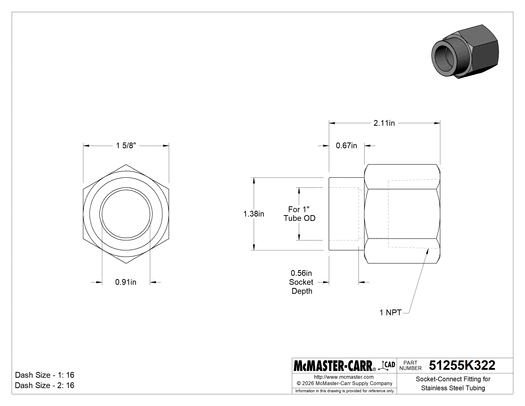

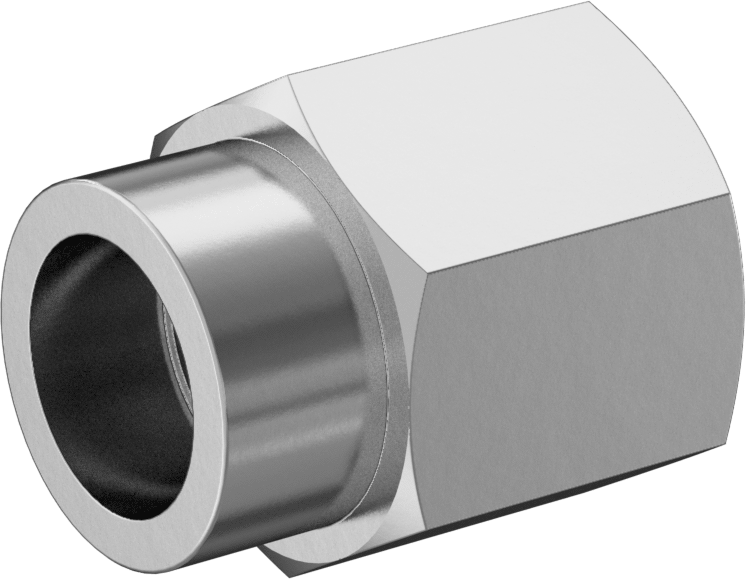

McMaster 51255K322 Socket-Connect Fitting for SS Tubing, 316 SS Adapter, 1" Tube OD × 1 NPT Female, 4300 psi

McMaster 51255K322 Socket-Connect Fitting for SS Tubing, 316 SS Adapter, 1" Tube OD × 1 NPT Female, 4300 psi

UPC: | Harmonization / Schedule B : 7307.22.5000

Country of Origin: United States | Shipping Weight: 1 lbs

$319.13 - $319.13
$319.13
$319.13 - $319.13
$319.13

These socket-connect fittings have the strength to handle high pressures up to 4,300 psi. Easier to weld than butt-weld fittings, they don’t need to align perfectly to tubing. Insert tubing into the socket end and weld to create a permanent, leak-tight connection. Fittings are 316 stainless steel for excellent corrosion resistance.

For Use With Air, Hydraulic Fluid, Water
Shape Straight
Type Adapter
Socket-Connect End Weld, Female, 9/16" Socket Depth, Dash 16, for 1" Tube OD
Threaded End NPT Female, Dash 16, 1 Pipe Size
Material 316/316L Stainless Steel
Maximum Pressure 4,300 psi @ 72° F
Maximum Vacuum Not Rated
Temperature Range -420° to 1200° F
Length 2 7/64"
For Tube Material 304 Stainless Steel, 316 Stainless Steel
For Tube Specifications Met ASTM A269
For Tube Fabrication Seamless, Welded
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
REACH Compliance REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant
DFARS Compliance Specialty Metals COTS-Exempt
Country of Origin United States
USMCA Qualifying Yes
Schedule B Number 7307.22.5000
ECCN 2B999
