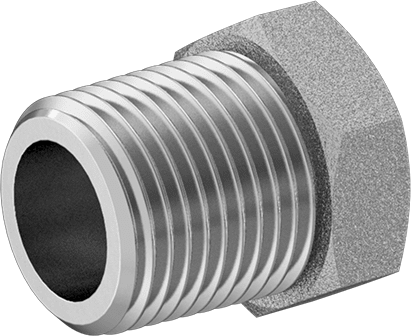

McMaster 50925K345 Compact Extreme-Pressure Steel Pipe Fitting Bushing Adapter, 3/8 NPTF Male x 1/4 NPTF Female

UPC: | Harmonization / Schedule B : 730799.2000

Country of Origin: China | Shipping Weight: 0.11 lbs

$32.04 - $32.04
$32.04
$32.04 - $32.04
$32.04

These fittings are strong enough to handle extreme pressures, yet small enough to fit into cramped spaces. They are zinc-plated steel, which have better corrosion resistance than plain steel fittings.

NPTF (Dryseal) threads are compatible with NPT threads.

For Use With

Air, Hydraulic Fluid, Water
Shape

Straight
Type

Reducing Adapter, Bushing
Body Shape

Hex
Fabrication

Machined
Connection Type

Pipe
Connection Style

Threaded
Connection

NPTF Male × NPTF Female

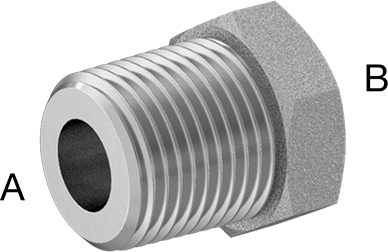

Pipe Size
(A)

3/8
(B)

1/4
Dash Size
(A)

06
(B)

04

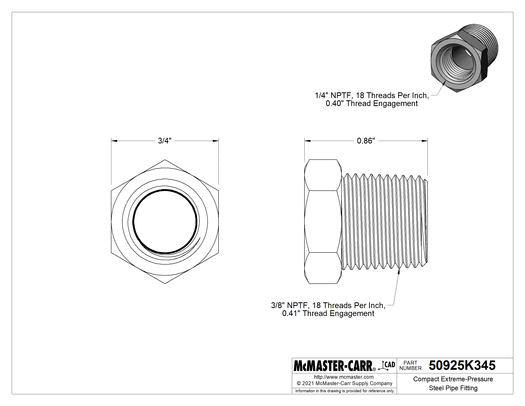

Length

55/64"
Hex Width

3/4"
Maximum Pressure

6,000 psi @ 72° F
Material

Zinc Plated Steel
Specifications Met

ASTM A108
RoHS

RoHS 3 (2015/863/EU) compliant with exemption 6(a)-I - Lead as an alloying element in steel
REACH

Not Compliant
DFARS

Specialty Metals COTS-Exempt
Country of Origin

Peoples Republic of China
Schedule B

730799.2000
ECCN

EAR99
