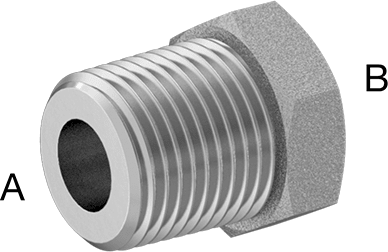

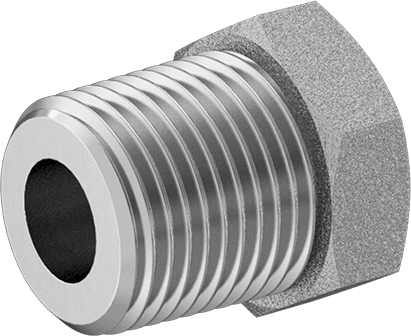

McMaster 50925K343 Compact Extreme-Pressure Steel Pipe Fitting Bushing Adapter, 3/8 NPTF Male x 1/8 NPTF Female

Name: McMaster 50925K343 Compact Extreme-Pressure Steel Pipe Fitting Bushing Adapter, 3/8 NPTF Male x 1/8 NPTF Female
Brand: McMaster-Carr
Price: 32.17 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7307.99.2000

Country of Origin: China | Shipping Weight: 0.05 lbs

$32.17 - $32.17

$32.17

$32.17 - $32.17

$32.17

These fittings are strong enough to handle extreme pressures, yet small enough to fit into cramped spaces. They are zinc-plated steel, which have better corrosion resistance than plain steel fittings.

NPTF (Dryseal) threads are compatible with NPT threads.

For Use With	Air, Hydraulic Fluid, Water
Shape	Straight
Type	Reducing Adapter, Bushing
Body Shape	Hex
Fabrication	Machined
Connection Type	Pipe
Connection Style	Threaded
Connection	NPTF Male × NPTF Female
Pipe Size
(A)	3/8
(B)	1/8
Dash Size
(A)	06
(B)	02

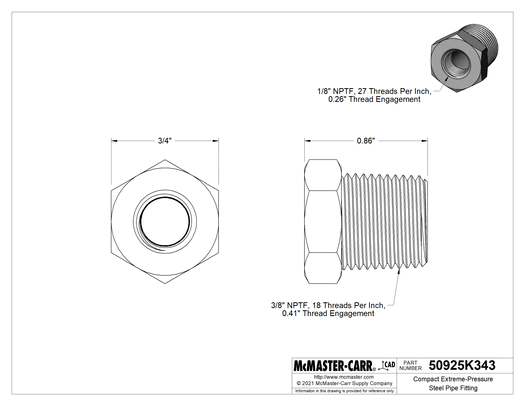

Length	55/64"
Hex Width	3/4"
Maximum Pressure	6,000 psi @ 72° F
Material	Zinc Plated Steel
Specifications Met	ASTM A108
RoHS	RoHS 3 (2015/863/EU) compliant with exemption 6(a)-I - Lead as an alloying element in steel
REACH	Not Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	Peoples Republic of China
Schedule B	730799.2000
ECCN	EAR99
