McMaster 50715K265 37 Degree Flared Fitting for Stainless Steel Tubing Straight Connector for 1" Tube OD

Name: McMaster 50715K265 37 Degree Flared Fitting for Stainless Steel Tubing Straight Connector for 1" Tube OD
Brand: McMaster-Carr
Price: 156.63 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7307.22.1000

Country of Origin: United States | Shipping Weight: 0.4 lbs

$156.63 - $156.63

$156.63

$156.63 - $156.63

$156.63

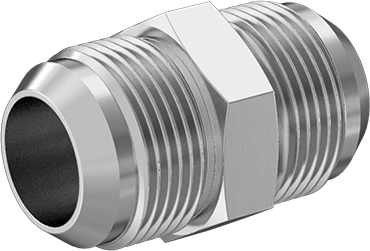

McMaster 50715K265 37 Degree Flared Fitting for Stainless Steel Tubing Straight Connector for 1" Tube OD

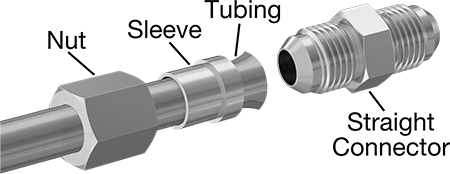

Also known as JIC (Joint Industrial Council) fittings, these provide a tight metal-to-metal seal on tubing that is flared to 37°. They withstand high pressure, so they’re often used in hydraulic applications. Made from 316 stainless steel, they resist corrosion from water and chemicals. A complete fitting requires a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.

Shape	Straight
Type	Connector
For Use With	Air, Hydraulic Fluid, Isopropyl Alcohol, Natural Gas, Phosphoric Acid, Water
Tube Connection
Connection Style	37° Flared
Flared Connection Type	Standard
Gender	Male
Thread Type	UN/UNF (JIC)
Thread Size	1 5/16"-12
Dash Size	16
For Tube OD	1"
Material	316 Stainless Steel
Maximum Pressure	4,500 psi @ 72° F
Temperature Range	-420° to 1200° F
Length	2 1/4"
For Tube Material	304 Stainless Steel, 316 Stainless Steel
For Tube Specifications Met	ASTM A213, ASTM A249, ASTM A269
For Tube Fabrication	Seamless, Welded
Specifications Met	ISO 8434, SAE J514
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	United States
USMCA Qualifying	No
Schedule B	730722.1000
ECCN	2B999
