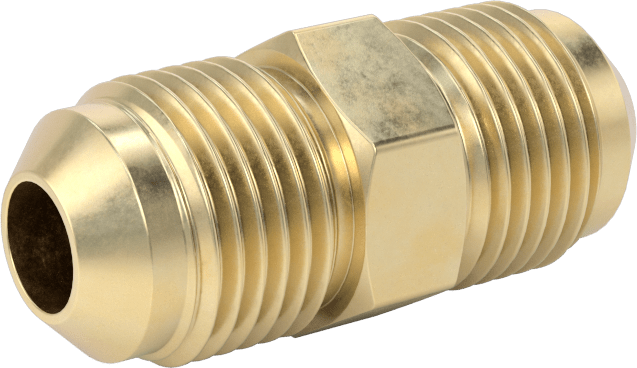

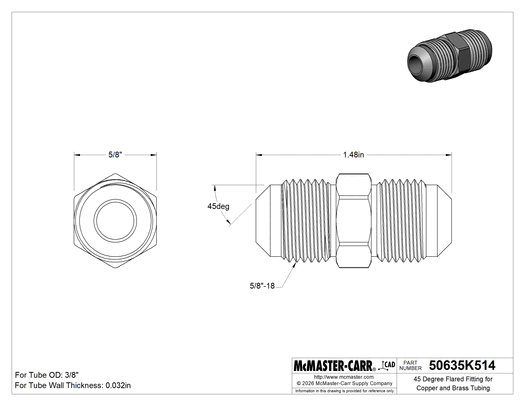

McMaster 50635K514 45 Degree Flared Fitting for Copper and Brass Tubing, Straight Connector for 3/8" Tube OD

McMaster 50635K514 45 Degree Flared Fitting for Copper and Brass Tubing, Straight Connector for 3/8" Tube OD

Name: McMaster 50635K514 45 Degree Flared Fitting for Copper and Brass Tubing, Straight Connector for 3/8" Tube OD
Brand: McMaster-Carr
Price: 45.76 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7412.20.0035

Country of Origin: United States | Shipping Weight: 0.85 lbs

$45.76 - $45.76

$45.76

$45.76 - $45.76

$45.76

Tighten a nut to install these fittings on 45° flared tubing. Unlike 37° flared fittings, you don't need a sleeve (ferrule) to form a tight seal. Also known as refrigeration and SAE fittings. You'll need one nut (sold separately) for each tube end.

Shape	Straight
Fitting Type	Connector
Fitting Connection	45° Flared, Flared
Connects To	Tube
Gender	Male
Material	Brass
For Tube OD	3/8"
Maximum Pressure @ Temperature	1,000 psi @ 72° F
Temp. Range	-65° F to 250° F
Material	Brass, Copper
Fabrication	Seamless
Certification	UL Listed
Flare Style	Flared
For Tube Specifications Met	ASTM B280
For Tube Wall Thickness	0.032"
For Use With	Air, Cutting Oil, Diesel Fuel, Fuel Oil, Mineral Oil, Refrigerant, Water
Length	1 31/64"
Maximum Temperature	250° F
Minimum Temperature	-65° F
Pressure Rating	Medium Pressure
Specifications Met	SAE J512, SAE J513
System of Measurement	Inch
Thread Size	5/8"-18
Thread Type	UN/UNF (SAE 45°)
UL File Number	MM23
Country of Origin	United States
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant with Exemptions
RoHS Exemptions	6(c)
Schedule B Number	741220.0000
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes
