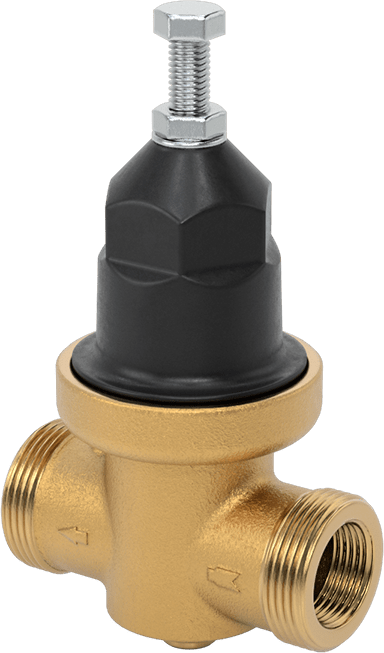

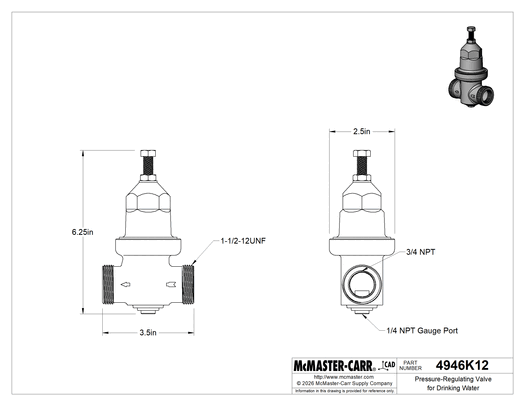

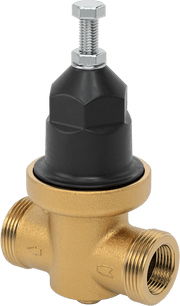

McMaster 4946K12 Pressure-Regulating Valve for Drinking Water, 3/4 NPT Female Inlet x Outlet

McMaster 4946K12 Pressure-Regulating Valve for Drinking Water, 3/4 NPT Female Inlet x Outlet

Name: McMaster 4946K12 Pressure-Regulating Valve for Drinking Water, 3/4 NPT Female Inlet x Outlet
Brand: McMaster-Carr
Price: 356.47 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 8481.80.9015

Country of Origin: China | Shipping Weight: 5.11 lbs

$356.47 - $356.47

$356.47

$356.47 - $356.47

$356.47

These valves meet NSF/ANSI 61 for use in drinking water systems. They automatically reduce a high, variable inlet pressure to a lower, stable outlet pressure. Adjust the outlet pressure within the range. All valves have a gauge port. An internal strainer traps debris. Body is bronze for durability and a long service life.

Pipe Size	3/4
Location	Side
Connection Port	Pipe
Connection	Threaded
Thread Type	NPT
Gender	Female
Maximum Pressure	400 psi
Body	Bronze
Seal	Buna-N
Diaphragm	Buna-N
Features	Internal Strainer
Pipe Size	3/4
Location	Side
Connection Port	Pipe
Connection	Threaded
Thread Type	NPT
Gender	Female
Pressure Range	15 psi to 75 psi
Pressure Adjustment Method	Screw
Pressure Gauge Included	No
Number of Ports	1
Pipe Size	1/4
Location	Bottom
Connection	NPT Female
End-to-End Length	3 1/2"
For Use With	Drinking Water
Temperature Range	33° F to 140° F
Certification	ASSE 1003 Listed, CSA Certified, IAPMO Listed
Food Industry Standard	NSF/ANSI 61
Actuation	Pressure
Environment	Food and Beverage
Flow Coefficient (Cv)	Not Rated
Shape	Straight
Type	Pressure Regulator
Function	Pressure Regulation
Country of Origin	China
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	Not Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	848180.9015
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	No
