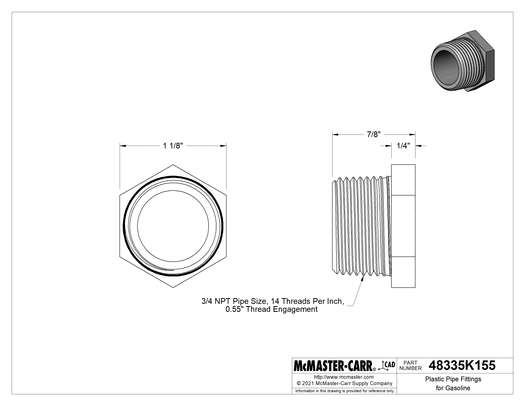

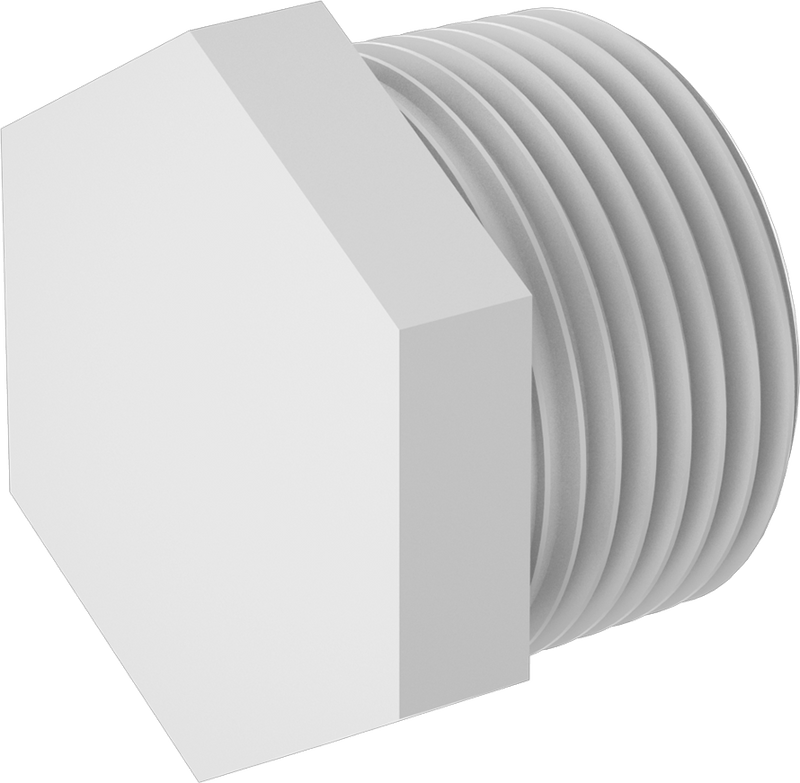

McMaster 48335K155 Nylon Plug with External Hex Drive, 3/4 NPT Male, for Gasoline
UPC: | Harmonization / Schedule B : 3917.40.0000
Country of Origin: United States | Shipping Weight: 0.05 lbs
UPC: | Harmonization / Schedule B : 3917.40.0000
Country of Origin: United States | Shipping Weight: 0.05 lbs
Use these plastic fittings to connect gasoline fuel lines to machines and equipment. They have excellent corrosion resistance as well as high strength and impact resistance.
To prevent leaks in threaded connections, apply a sealant to the male threads. Threaded connections can be taken apart as needed for maintenance and repair. For metal threads, use PTFE tape. For plastic threads, apply a non-hardening, plastic-compatible sealant. Tape or sealants with PTFE are not recommended for plastic-to-plastic connections. When making a threaded connection be careful not to overtighten the threads. To prevent cracks and leaks, finger tighten the fitting, then wrench-tighten one to two turns.
Warning: Never use plastic pipe fittings, flanges, and pipe with compressed air or gas.
| Shape | Cap and Plug |
| Drive Style | External Hex |
| Fitting Type | Plug |
| Fitting Connection | NPT Male |
| Pipe Size | 3/4 |
| Material | Nylon |
| Color | White |
| Maximum Pressure @ Temperature | 70 psi @ 72° F |
| Connects To | Pipe |
| Drive Size | 1 1/8" |
| For Use With | Gasoline |
| Length | 7/8" |
| System of Measurement | Inch |
| Temperature Range | 32° F to 160° F |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 3917.40.0000 |
| USMCA Qualifying | Yes |
