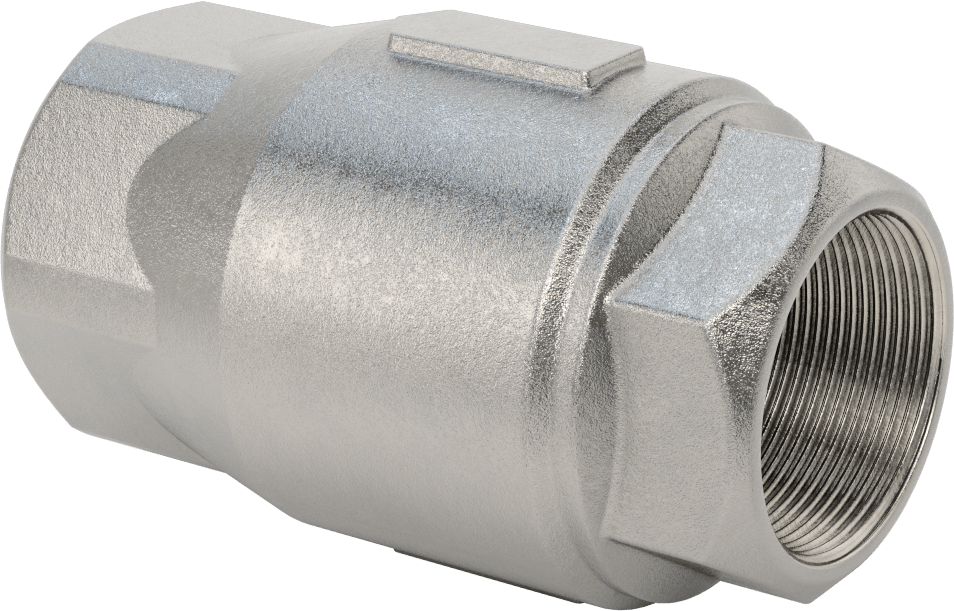

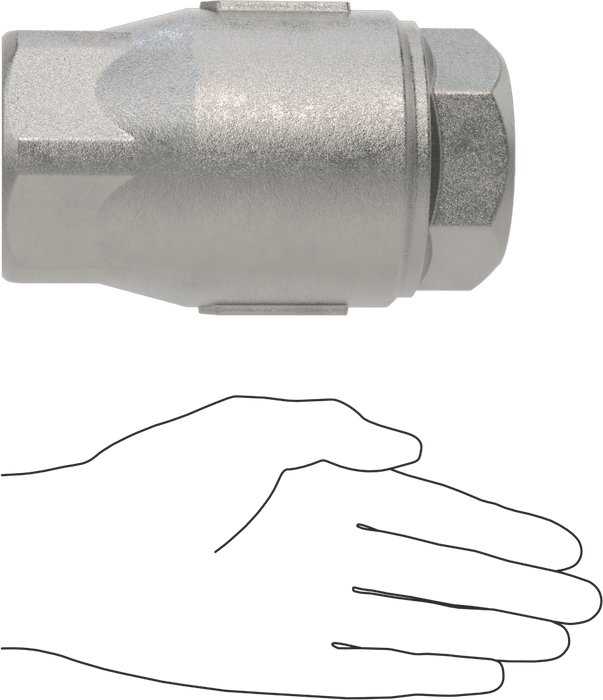

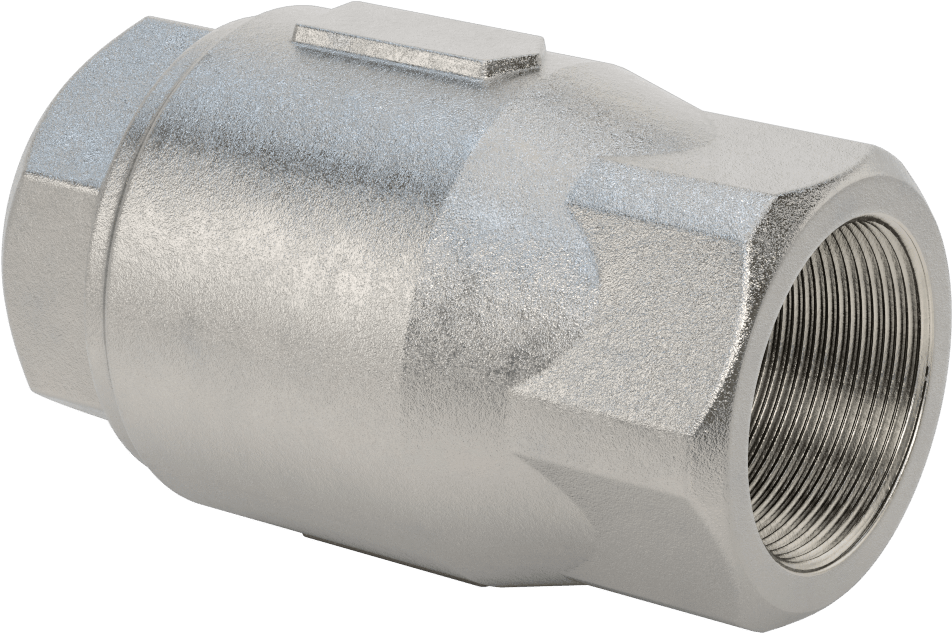

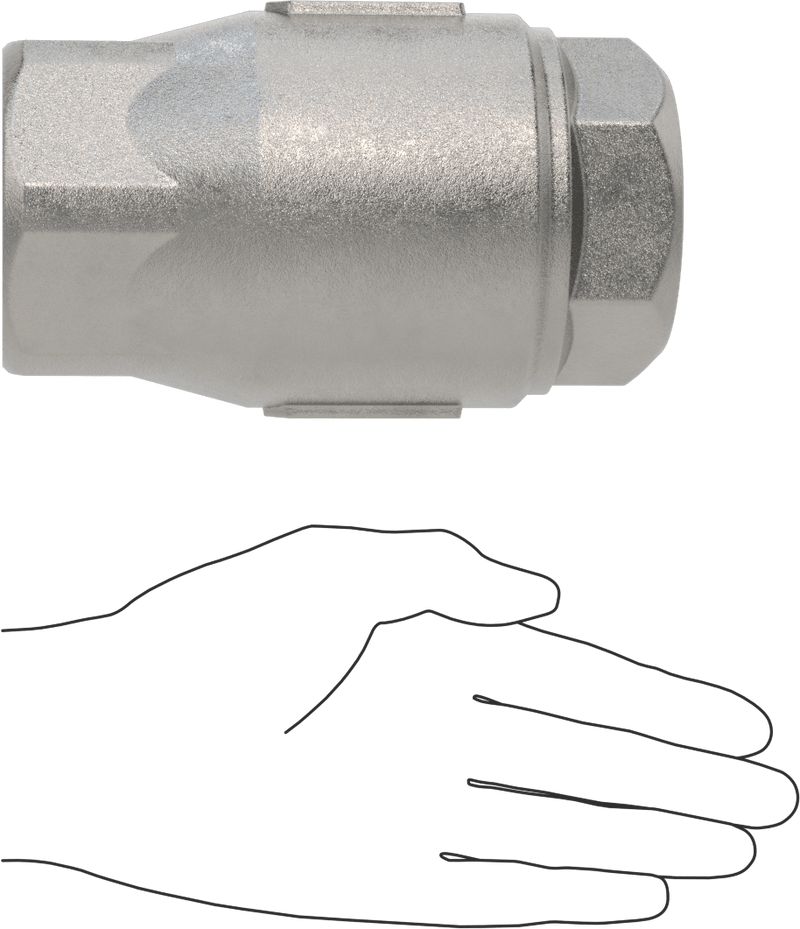

McMaster 47885K78 316 Stainless Steel Check Valve, for Steam, 2 NPT Female, 81 Cv

McMaster 47885K78 316 Stainless Steel Check Valve, for Steam, 2 NPT Female, 81 Cv

UPC: | Harmonization / Schedule B : 8481.30.2090

Country of Origin: United States | Shipping Weight: 8 lbs

$1,843.60 - $1,843.60
$1,843.60
$1,843.60 - $1,843.60
$1,843.60

To withstand high pressures and temperatures in steam service applications, these valves have a 316 stainless steel body, PTFE ball, and PTFE seal. They open to allow flow in one direction and close when flow stops or reverses.

Flow Coefficient (Cv) — Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

Warning: Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency.

Body Material 316 Stainless Steel
Check Valve Type Spring-Loaded Ball
Inlet Connection Threaded, NPT Female, Connects to Pipe
Outlet Connection Threaded, NPT Female, Connects to Pipe
Pipe Size 2
Flow Coefficient (Cv) 81
Maximum Steam Pressure @ Temperature 125 psi @ 350° F
Minimum Opening Pressure 0.5 psi
Temperature Range -5° F to 350° F

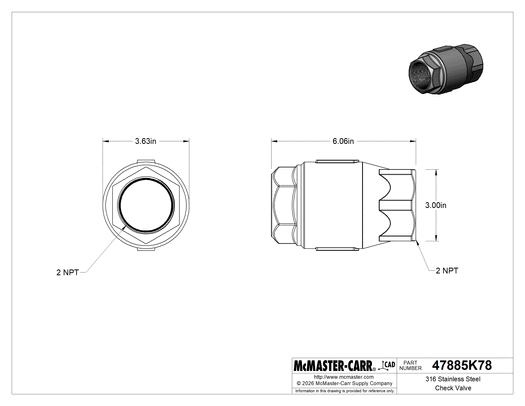

End-to-End Length 6"
Mounting Position Horizontal, Vertical
For Use With Steam
Ball Material PTFE
Spring Material 316 Stainless Steel
Seal Material PTFE
Actuation Pressure
Chemical Resistance (Excellent) Steam
Fitting Type Connector
Shape Straight
Valve Function Backflow Prevention
Valve Type Check
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN 2B999
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 8481.30.2090
USMCA Qualifying Yes
