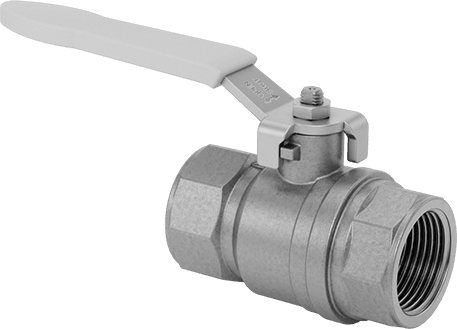

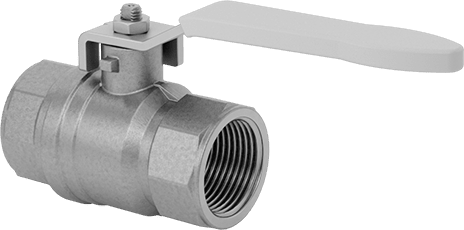

McMaster 47865K25 Brass Body On/Off Valve with Lever Handle, 1 NPT Female, 80.9 Cv

Name: McMaster 47865K25 Brass Body On/Off Valve with Lever Handle, 1 NPT Female, 80.9 Cv
Brand: McMaster-Carr
Price: 77.86 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 8481.80.1085

Country of Origin: Italy | Shipping Weight: 1.05 lbs

$77.86 - $77.86

$77.86

$77.86 - $77.86

$77.86

Use these valves in general purpose applications, such as those with water, oil, air, and inert gas.

Brass valves have good corrosion resistance to air, water, and oil.

Full-port valves do not restrict flow.

FM-approved valves are used in fire suppression systems. They help isolate parts of water supply systems in buildings and plants.

Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

Lever handles give you the most leverage for quickly opening and closing valves with minimal effort.

Pipe Size	1
Flow Coefficient (Cv)	80.9
Maximum Pressure	600 psi @ 100° F
Maximum Steam Pressure	150 psi @ 350° F
Temperature Range	-40° to 350° F
Vacuum Rating	29.9 in. of Hg
Port Type	Full
End-to-End Length	3 3/16"
Valve Function	On/Off
Valve Type	Ball
Activation	Manual
Valve Operation	Handle
Handle Style	Lever
Handle Type	Standard
Fitting Type	Connector
Connection Type	Pipe
Connection Style	Threaded
Gender	Female × Female
Thread Type	NPT
Body Material	Brass
Ball Material	Brass
Seal Material	Fluorocarbon Rubber
Seat Material	PTFE Plastic
Shape	Straight
Overall
Height	3 1/16"
Length	6 5/16"
For Use With	Water, Oil, Air, Argon, Helium, Krypton, Neon, Xenon, Steam
Specifications Met	FM Approved, UL Listed, C-UL Listed, CSA-US Certified, CSA Certified
UL File Number	MH15505
CSA File Number	112439_0_000
Chemical Resistance
Excellent	Acetone, Air, Argon, Butane, Carbon Dioxide, Diesel Fuel, Gasoline, Helium, Kerosene, Krypton, Neon, Nitrogen, Oil, Oxygen, Propane, Soap Solutions, Sodium Hydroxide (25% Concentration), Sodium Hydroxide (50% Concentration), Steam, Water, Xenon
Moderate	Ethanol, Ethylene Glycol, Isopropyl Alcohol, Methanol, Mineral Spirits, Natural Gas, Salt Water, Toluene, Xylene
Poor	Ammonia, Citric Acid (100% Concentration), Citric Acid (25% Concentration), Citric Acid (50% Concentration), Hydrochloric Acid (100% Concentration), Hydrochloric Acid (25% Concentration), Hydrochloric Acid (37% Concentration), Methanol, Methyl Ethyl Ketone, Nitric Acid (100% Concentration), Nitric Acid (25% Concentration), Nitric Acid (50% Concentration), Phosphoric Acid (25%), Phosphoric Acid (50%), Sodium Hydroxide (100% Concentration), Sodium Hydroxide (75% Concentration), Sodium Hypochlorite (100% Concentration), Sodium Hypochlorite (25% Concentration), Sodium Hypochlorite (50% Concentration), Sulfuric Acid
Warning Message	Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency.
RoHS	RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy
REACH	Not Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	Italy
Schedule B	848180.1085
ECCN	EAR99
