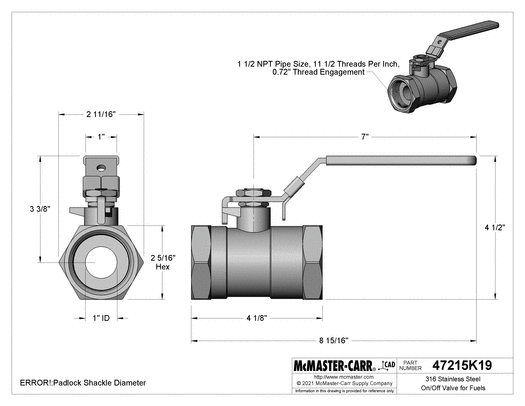

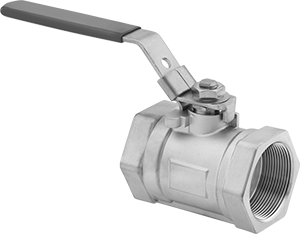

McMaster 47215K19 316 Stainless Steel On/Off Valve for Fuel with Graphite Seal, 1-1/2 NPT Female, 1000 PSI @ 200°F

Name: McMaster 47215K19 316 Stainless Steel On/Off Valve for Fuel with Graphite Seal, 1-1/2 NPT Female, 1000 PSI @ 200°F
Brand: McMaster-Carr
SKU: KV47215K19
Price: 249.34 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 8481.80.3070

Country of Origin: Taiwan | Shipping Weight: 3.6 lbs

$249.34 - $249.34

$249.34

$249.34 - $249.34

$249.34

Quantity

Protect personnel and equipment in the presence of diesel fuel, fuel oil, gasoline, and kerosene. Fire-tested to meet American Petroleum Institute (API) 607, these valves are designed to securely isolate fluid and prevent the spread of fire. They have a lockable handle that can be fixed in place using a padlock (not included).

316 stainless steel valves are more corrosion resistant than steel valves.

Standard-port valves slightly restrict flow.

Valve Function	On/Off
Valve Type	Ball
Activation	Manual
Valve Operation	Handle
Handle Style	Lever
Handle Type	Lockable
Fitting Type	Connector
Connection Type	Pipe
Connection Style	Threaded
Pipe Size	1 1/2
Gender	Female
Thread Type	NPT
Flow Coefficient (Cv)	33
Maximum Pressure	1000 psi @ 200° F
Temperature Range	-20° to 500° F
Vacuum Rating	Not Rated
Body Material	316 Stainless Steel
Ball Material	316 Stainless Steel
Seal Material	Graphite
Seat Material	PTFE Plastic
Port Type	Standard
Shape	Straight
End-to-End Length	4 1/8"
For Maximum Shackle Diameter	9/32"
Overall
Height	4 1/2"
Length	8 15/16"
For Use With	Diesel Fuel, Fuel Oil, Gasoline, Kerosene
Specifications Met	American Petroleum Institute Standard 607 - Edition 4
Chemical Resistance
Excellent	Acetone, Ammonia, Butane, Citric Acid (25% Concentration), Citric Acid (50% Concentration), Diesel Fuel, Ethanol, Fuel Oil, Gasoline, Kerosene, Propane, Toluene
Warning Message	Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency.
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	Taiwan
Schedule B	848180.3070
ECCN	2B999
