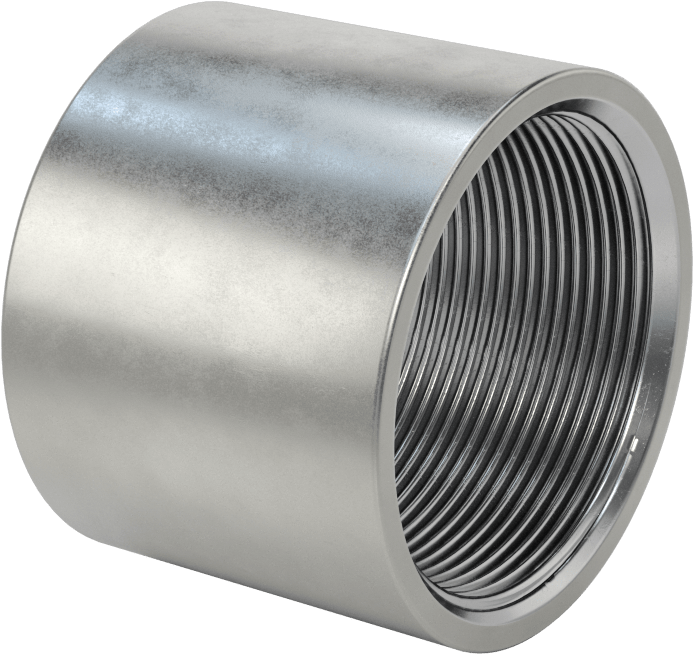

McMaster 46685K469 Low-Pressure Steel Straight Connector, Galvanized, Threaded From One End, 2 NPSC Female, Class 150

McMaster 46685K469 Low-Pressure Steel Straight Connector, Galvanized, Threaded From One End, 2 NPSC Female, Class 150

UPC: | Harmonization / Schedule B : 7307.92.3010

Country of Origin: United States | Shipping Weight: 1.04 lbs

$87.29 - $87.29
$87.29
$87.29 - $87.29
$87.29

The galvanized finish on these fittings provides fair corrosion resistance. Fittings are for use in low-pressure applications.

Compact Body — Compact straight connectors are able to fit into tight spaces. They are also known as merchant couplings.

NPSC Thread — NPSC (National Pipe Straight Coupling) threads are compatible with NPT threads.

Pressure Rating Low Pressure
Body Type Compact
Shape Straight
Fitting Type Connector
Fitting Connection NPSC Female
Pipe Size 2
Pressure Class 150
Material Galvanized Steel
Maximum Pressure @ Temperature 150 psi @ 72° F
Maximum Steam Pressure @ Temperature 150 psi @ 350° F
Connects To Pipe
Class 150
For Pipe Material Galvanized Steel
For Pipe Schedule 40
For Use With Air, Natural Gas, Oil, Steam, Water

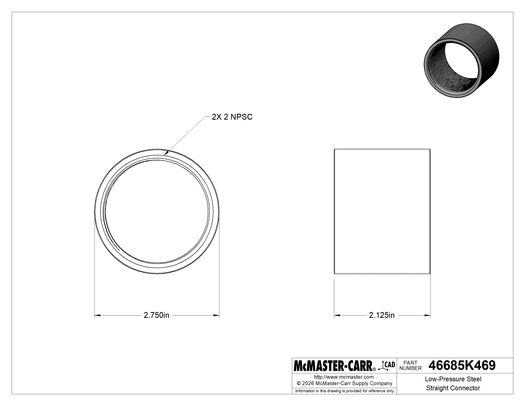

Length 2 1/8"
Specifications Met ASTM A53, ASTM A865, ASTM B633
System of Measurement Inch
Threading Fully Threaded
Weight 1.04 lb.
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance Not Compliant
Schedule B Number 7307.92.3010
USMCA Qualifying No
