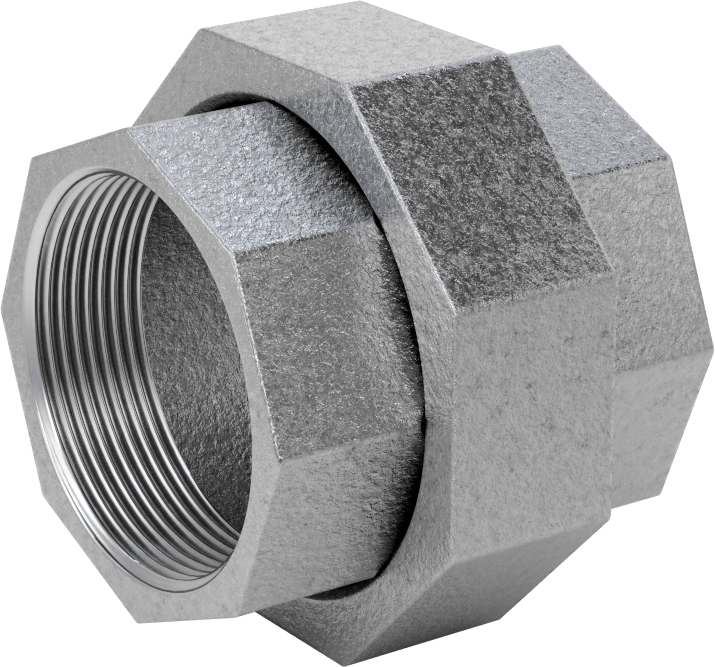

McMaster 4638K738 Low-Pressure Pipe Fitting, Galvanized Iron, Union Straight Connector, 2 NPT Female, Class 150

McMaster 4638K738 Low-Pressure Pipe Fitting, Galvanized Iron, Union Straight Connector, 2 NPT Female, Class 150

UPC: | Harmonization / Schedule B : 7307.19.9030

Country of Origin: United States | Shipping Weight: 2.95 lbs

$143.89 - $143.89
$143.89
$143.89 - $143.89
$143.89

The galvanized finish on these fittings provides fair corrosion resistance. Fittings are for use in low-pressure applications.

Union Fitting — Union fittings separate into three pieces so you can access your line without unthreading pipe connections.

Pressure Rating Low Pressure
Shape Straight
Fitting Type Connector, Union
Gasket Included Yes
Fitting Connection NPT Female
Pipe Size 2
Pressure Class 150
Body Shape Hex
Material Galvanized Iron
Maximum Pressure @ Temperature 300 psi @ 72° F
Maximum Steam Pressure @ Temperature 150 psi @ 350° F
Gasket Material Brass
Certification UL Listed
Connects To Pipe
Class 150
For Pipe Material Galvanized Steel
For Pipe Schedule 40
For Use With Air, Natural Gas, Oil, Steam, Water

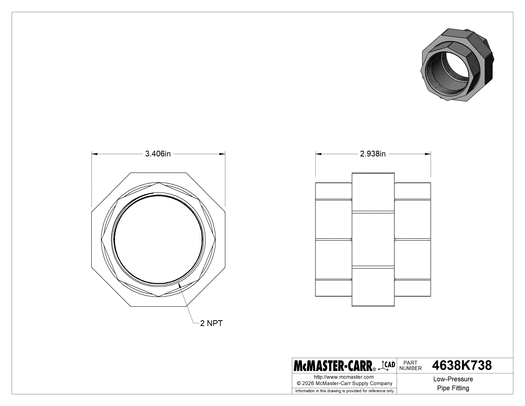

Hex Width 3 13/32"
Length 2 15/16"
Specifications Met ASME B1.20.1, ASME B16.39, ASTM A197
System of Measurement Inch
Weight 2.95 lb.
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 7307.19.9030
USMCA Qualifying Yes
