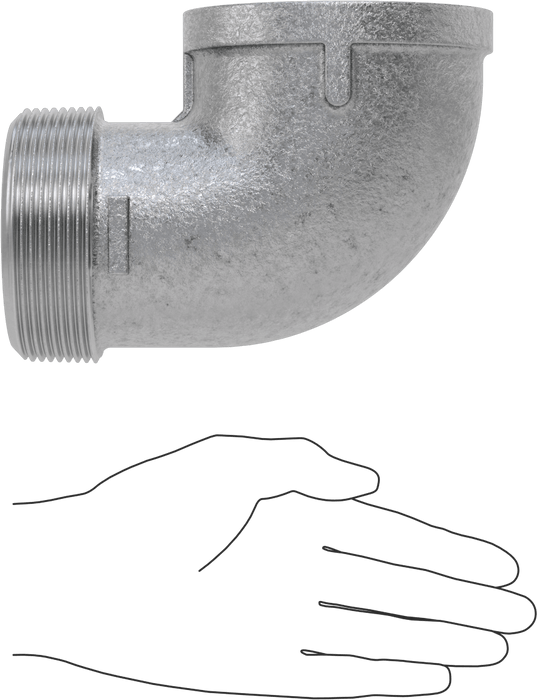

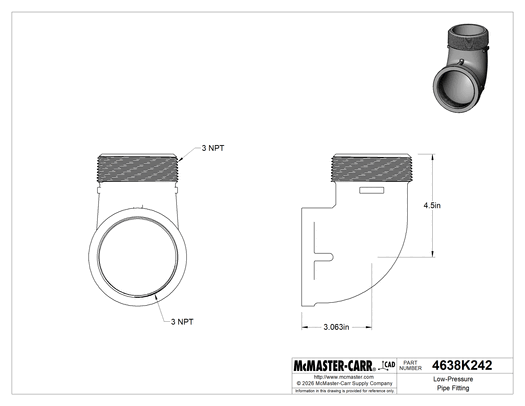

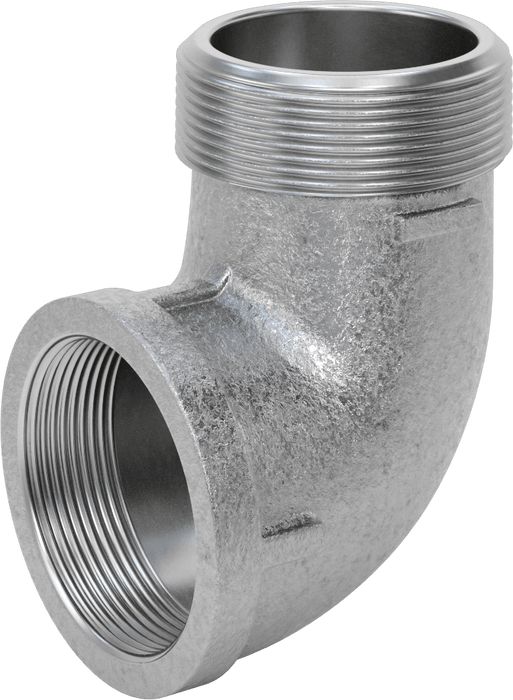

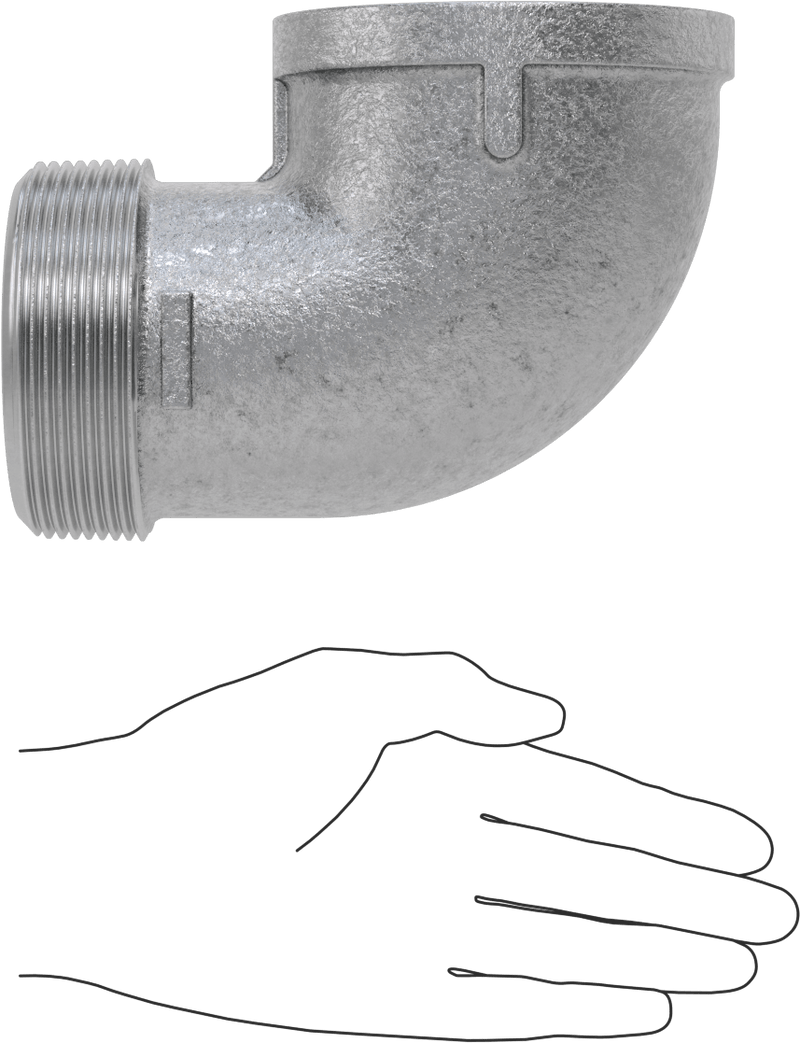

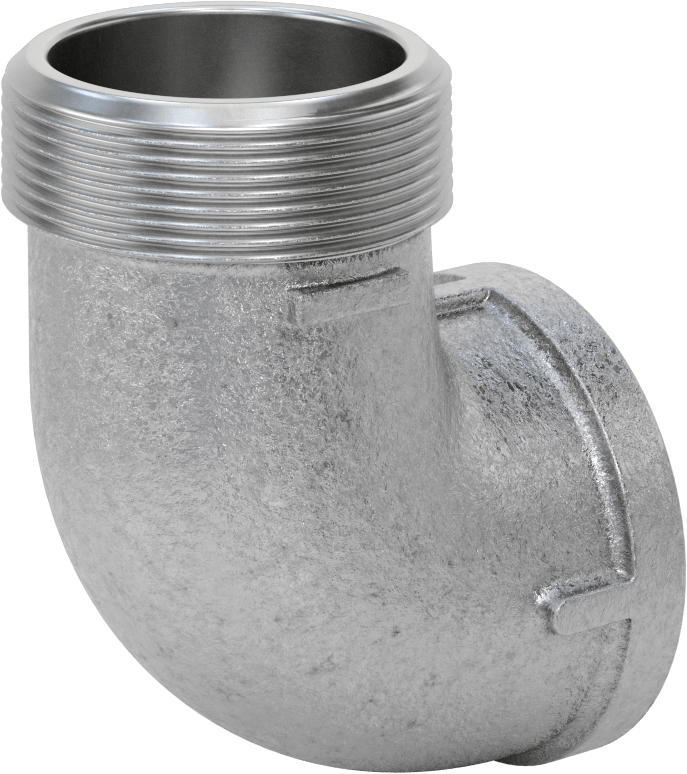

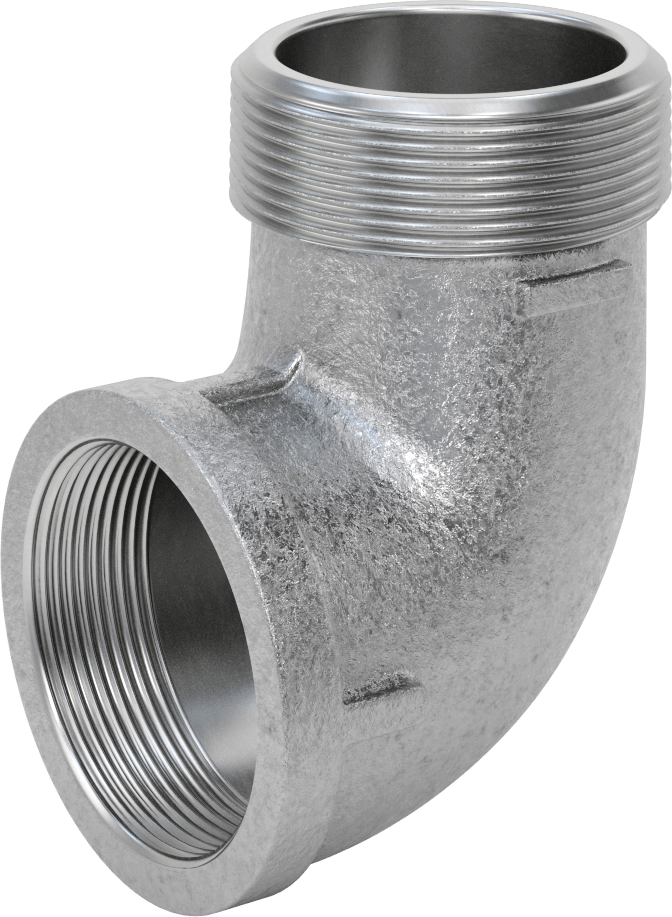

McMaster 4638K242 Low-Pressure Pipe Fitting, Galvanized Iron, 90° Elbow Adapter, 3 NPT Female × Male, Class 150

McMaster 4638K242 Low-Pressure Pipe Fitting, Galvanized Iron, 90° Elbow Adapter, 3 NPT Female × Male, Class 150

UPC: | Harmonization / Schedule B : 7307.19.9090

Country of Origin: United States | Shipping Weight: 6.025 lbs

$368.58 - $368.58
$368.58
$368.58 - $368.58
$368.58

The galvanized finish on these fittings provides fair corrosion resistance. Fittings are for use in low-pressure applications.

90° Elbow Adapters — Female x male 90° elbow adapters are also known as street elbows.

Pressure Rating Low Pressure
Shape 90° Elbow
Fitting Type Adapter
Fitting Connection NPT Female × NPT Male
Pipe Size (A) 3
Pipe Size (B) 3
Pressure Class 150
Material Galvanized Iron
Maximum Pressure @ Temperature 150 psi @ 72° F
Maximum Steam Pressure @ Temperature 150 psi @ 350° F
Certification UL Listed
Connects To Pipe
Class 150
For Pipe Material Galvanized Steel
For Pipe Schedule 40
For Use With Air, Natural Gas, Oil, Steam, Water
Specifications Met ASME B1.20.1, ASME B16.3, ASTM A197
Weight 6.025 lb.
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 7307.19.9090
USMCA Qualifying Yes
