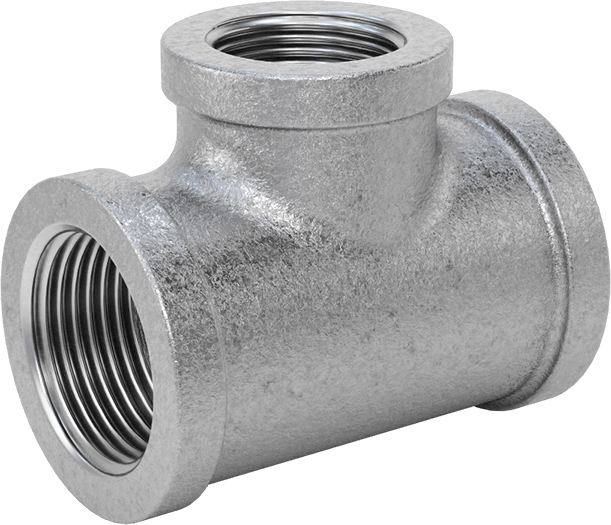

McMaster 4638K179 Low-Pressure Pipe Fitting, Galvanized Iron, Inline Tee Reducer, 1 x 3/4 NPT Female

McMaster 4638K179 Low-Pressure Pipe Fitting, Galvanized Iron, Inline Tee Reducer, 1 x 3/4 NPT Female

UPC: | Harmonization / Schedule B : 7307.19.9090

Country of Origin: United States, China | Shipping Weight: 0.82 lbs

$70.31 - $70.31
$70.31
$70.31 - $70.31
$70.31

Commonly used in low-pressure water supply and utility piping systems, these galvanized fittings won't rust in wet and outdoor environments.

Inline — Inline tees are also known as branch tees.

Pressure Rating Low Pressure
Tee Type Inline
Shape Tee
Fitting Type Reducer
Fitting Connection NPT Female × NPT Female × NPT Female

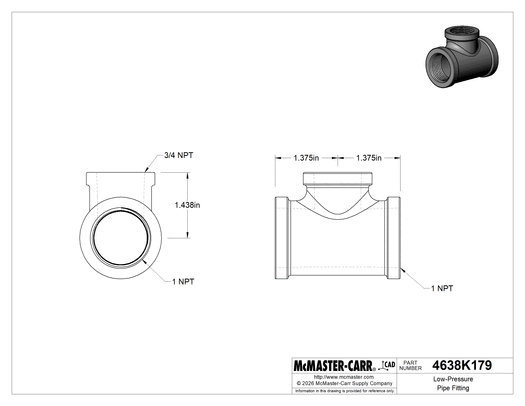

(A) 1
(B) 3/4
(C) 1
Pressure Class 150
Material Galvanized Iron
Maximum Pressure @ Temperature 150 psi @ 72° F
Maximum Steam Pressure @ Temperature 150 psi @ 350° F
Certification UL Listed
Connects To Pipe
Class 150
Material Galvanized Steel
For Pipe Material Galvanized Steel
For Pipe Schedule 40
For Use With Air, Natural Gas, Oil, Steam, Water
Specifications Met ASME B1.20.1, ASME B16.3, ASTM A153
Weight 0.82 lb.
Country of Origin United States, China
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 730719.9090
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
