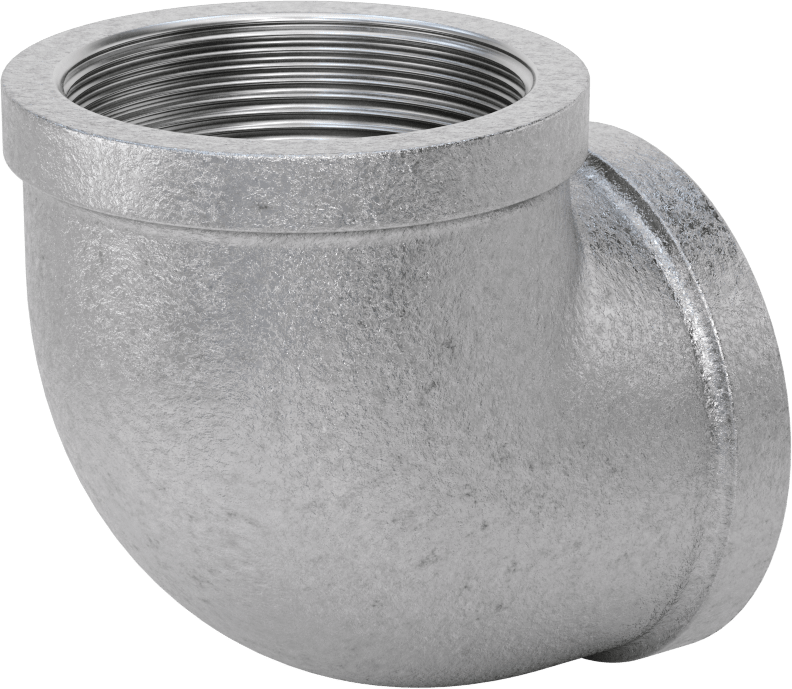

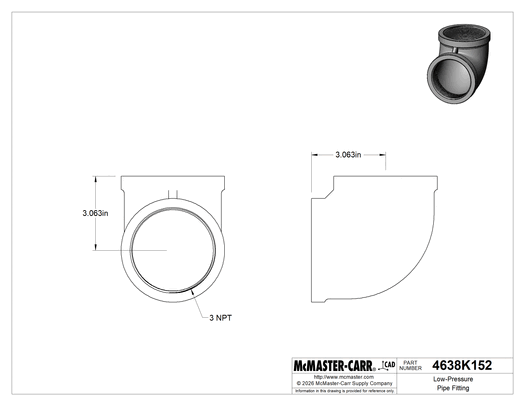

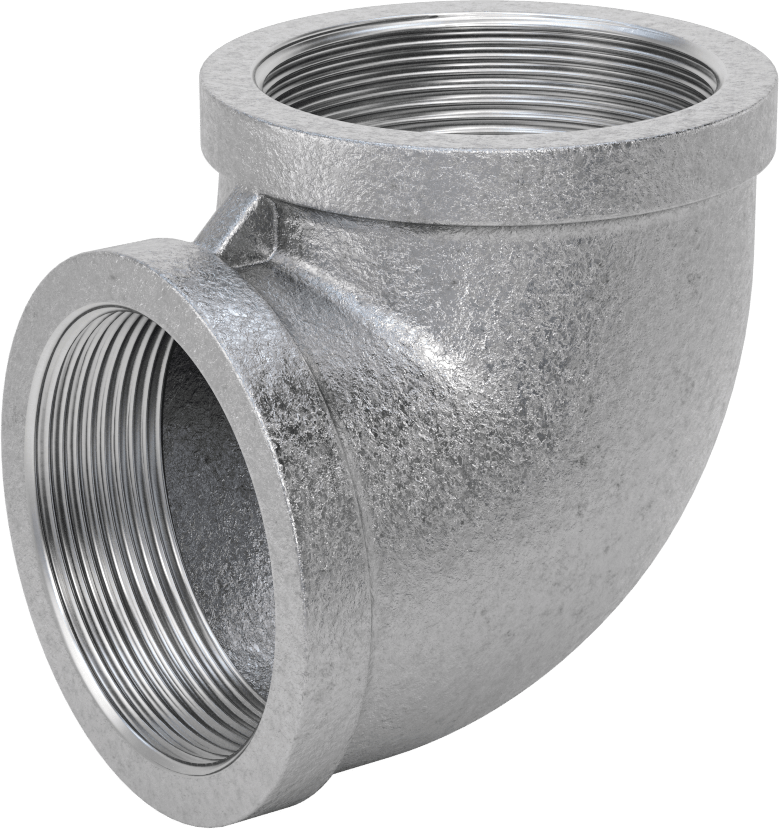

McMaster 4638K152 Low-Pressure Pipe Fitting, Galvanized Iron, 90° Elbow Connector, 3 NPT Female, Class 150

McMaster 4638K152 Low-Pressure Pipe Fitting, Galvanized Iron, 90° Elbow Connector, 3 NPT Female, Class 150

UPC: | Harmonization / Schedule B : 7307.19.9090

Country of Origin: United States | Shipping Weight: 5.27 lbs

$288.71 - $288.71
$288.71
$288.71 - $288.71
$288.71

The galvanized finish on these fittings provides fair corrosion resistance. Fittings are for use in low-pressure applications.

Pressure Rating Low Pressure
Shape 90° Elbow
Fitting Type Connector
Fitting Connection NPT Female
Pipe Size 3
Pressure Class 150
Material Galvanized Iron
Maximum Pressure @ Temperature 150 psi @ 72° F
Maximum Steam Pressure @ Temperature 150 psi @ 350° F
Certification UL Listed
Connects To Pipe
Class 150
For Pipe Material Galvanized Steel
For Pipe Schedule 40
For Use With Air, Natural Gas, Oil, Steam, Water
Specifications Met ASME B1.20.1, ASME B16.3, ASTM A197
Weight 5.27 lb.
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
ECCN EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 7307.19.9090
USMCA Qualifying Yes
