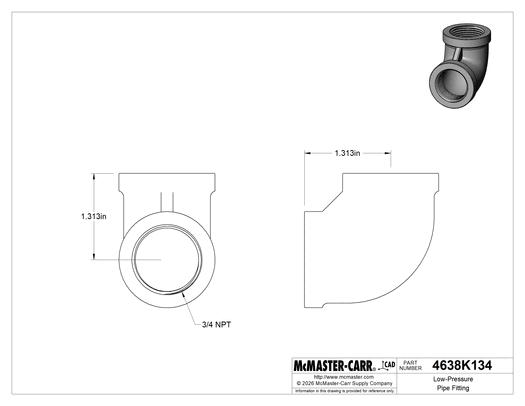

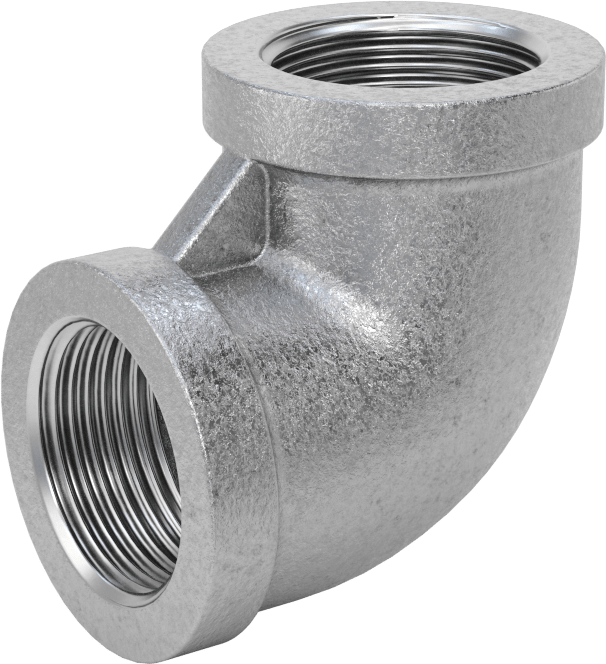

McMaster 4638K134 Low-Pressure Pipe Fitting, Galvanized Iron, 90 Degree Elbow Connector, 3/4 NPT Female

McMaster 4638K134 Low-Pressure Pipe Fitting, Galvanized Iron, 90 Degree Elbow Connector, 3/4 NPT Female

UPC: | Harmonization / Schedule B : 7307.19.9090

Country of Origin: United States, Thailand | Shipping Weight: 0.475 lbs

$46.20 - $46.20
$46.20
$46.20 - $46.20
$46.20

Commonly used in low-pressure water supply and utility piping systems, these galvanized fittings won't rust in wet and outdoor environments.

Pressure Rating Low Pressure
Shape 90° Elbow
Fitting Type Connector
Fitting Connection NPT Female
Pipe Size 3/4
Pressure Class 150
Material Galvanized Iron
Maximum Pressure @ Temperature 150 psi @ 72° F
Maximum Steam Pressure @ Temperature 150 psi @ 350° F
Certification UL Listed
Connects To Pipe
Class 150
Material Galvanized Steel
For Pipe Material Galvanized Steel
For Pipe Schedule 40
For Use With Air, Natural Gas, Oil, Steam, Water
Specifications Met ASME B1.20.1, ASME B16.3, ASTM A197
Weight 0.475 lb.
Country of Origin United States, Thailand
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 730719.9090
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
