McMaster 4638K128 Low - Pressure Pipe Fitting Galvanized Iron Tee Connector, 2 NPT Female - KVM Tools Inc.KV4638K128

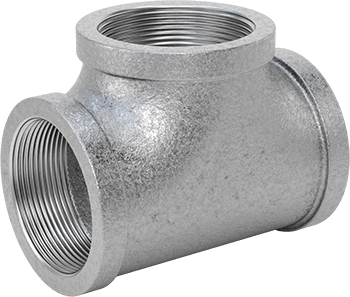

McMaster 4638K128 Low-Pressure Pipe Fitting Galvanized Iron Tee Connector, 2 NPT Female

Name: McMaster 4638K128 Low-Pressure Pipe Fitting Galvanized Iron Tee Connector, 2 NPT Female
Brand: McMaster-Carr
Price: 94.13 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 730719.9090

Country of Origin: United States | Shipping Weight: 2.5 lbs

$94.13 - $94.13

$94.13

$94.13 - $94.13

$94.13

The galvanized finish on these fittings provides fair corrosion resistance. Fittings are for use in low-pressure applications.

For Use With	Air, Natural Gas, Oil, Steam, Water
Shape	Tee
Type	Connector
Pressure Class	150
Connection Type	Pipe
Connection Style	Threaded
Connection	NPT Female
Pipe Size	2
Maximum Pressure	150 psi @ 72° F
Maximum Steam Pressure	150 psi @ 350° F
Material	Galvanized Iron
For Pipe
Schedule	40
Material	Galvanized Steel
For Flange
Class	150
Material	Galvanized Steel
Specifications Met	ASME B1.20.1, ASME B16.3, ASTM A197, UL Listed
Weight	2.87 lbs.
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	United States
USMCA Qualifying	No
Schedule B	730719.9090
ECCN	EAR99
