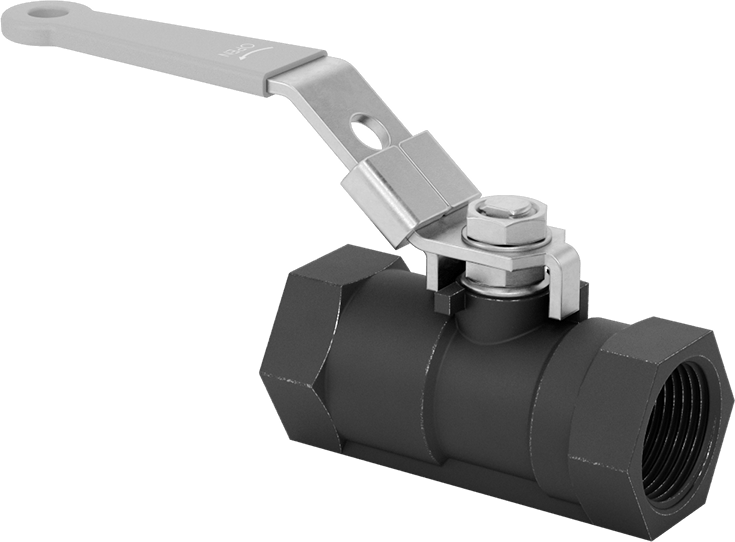

McMaster 4631K14 Steel Body On/Off Valve for Fuel, Graphite Seal, 1 NPT Female, 1000 PSI @ 200 Degree F Maximum
McMaster 4631K14 Steel Body On/Off Valve for Fuel, Graphite Seal, 1 NPT Female, 1000 PSI @ 200 Degree F Maximum
McMaster 4631K14 Steel Body On/Off Valve for Fuel, Graphite Seal, 1 NPT Female, 1000 PSI @ 200 Degree F Maximum
McMaster 4631K14 Steel Body On/Off Valve for Fuel, Graphite Seal, 1 NPT Female, 1000 PSI @ 200 Degree F Maximum
McMaster 4631K14 Steel Body On/Off Valve for Fuel, Graphite Seal, 1 NPT Female, 1000 PSI @ 200 Degree F Maximum
McMaster 4631K14 Steel Body On/Off Valve for Fuel, Graphite Seal, 1 NPT Female, 1000 PSI @ 200 Degree F Maximum
McMaster 4631K14 Steel Body On/Off Valve for Fuel, Graphite Seal, 1 NPT Female, 1000 PSI @ 200 Degree F Maximum
McMaster 4631K14 Steel Body On/Off Valve for Fuel, Graphite Seal, 1 NPT Female, 1000 PSI @ 200 Degree F Maximum

McMaster 4631K14 Steel Body On/Off Valve for Fuel, Graphite Seal, 1 NPT Female, 1000 PSI @ 200 Degree F Maximum

UPC: | Harmonization / Schedule B : 8481.80.3070

Country of Origin: Taiwan | Shipping Weight: 5.52 lbs

$150.84 - $150.84
$150.84
$150.84 - $150.84
$150.84

Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency.

Protect personnel and equipment in the presence of diesel fuel, fuel oil, gasoline, and kerosene. Fire-tested to meet American Petroleum Institute (API) 607, these valves are designed to securely isolate fluid and prevent the spread of fire. They have a lockable handle that can be fixed in place using a padlock (not included).

Standard Port — Standard-port valves slightly restrict flow.

Flow Coefficient (Cv)—Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

Body Material Steel
Seal Material Graphite
Fitting Connection Threaded
Thread Type NPT
Gender Female
Fitting Connection Threaded
Thread Type NPT
Gender Female
Inlet 1
Outlet 1
Flow Coefficient (Cv) 14
Maximum Pressure @ Temperature 1,000 psi @ 200° F
Temperature Range -20° F to 500° F
Vacuum Rating Not Rated
Port Type Standard

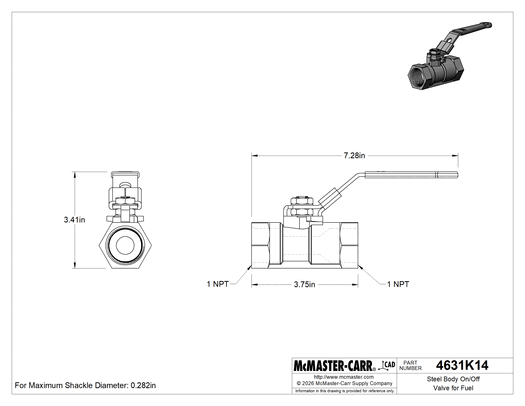

End-to-End Length 3 3/4"
For Maximum Shackle Diameter 9/32"
Function On/Off
Type Ball
Actuation Manual
Ball Material 316 Stainless Steel
Excellent Acetone, Ammonia, Butane, Diesel Fuel, Fuel Oil, Gasoline, Kerosene, Methanol (Methyl Alcohol), Propane, Toluene (Methylbenzene)
Moderate Ethylene Glycol
Poor Nitric Acid (25% Concentration), Nitric Acid (50% Concentration), Sodium Hydroxide (Caustic Soda) (75% Concentration), Sodium Hydroxide (Caustic Soda) (100% Concentration)
Connects to Pipe
Connects to Pipe
Fitting Type Connector
For Use With Diesel Fuel
Fuel Oil
Gasoline
Kerosene
Style Lever
Type Lockable
Height 3 3/8"
Length 7 1/4"
Seat Material PTFE
Shape Straight
Valve Operation Handle
Warning Message Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency.
Country of Origin Taiwan
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 848180.3070
U.S.–Mexico–Canada Agreement (USMCA) Qualifying No
